LYTE II series DIN-rail mounting, ultra slim power supplies for general applications.

• Universal input range: 85...264 VAC

• Efficiency: Up to 90% (at 230 VAC)

• Operating temperature: -20°C to +70°C

• Includes built-in constant current circuit for reactive loads

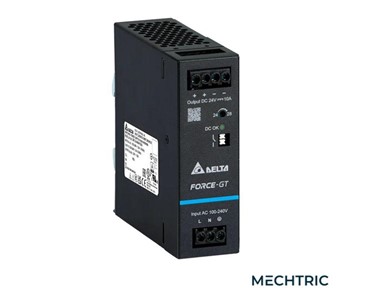

FORCE-GT series DIN-rail mounting, high specification series power supplies

• High efficiency: Up to 95% (at 230 VAC)

• Operating temp: -30°C to +70°C

• Ultra-Slim design

• Includes built-in "DC OK" relay and LED indicator

• Full-load operating temperature up to 60°C

• Includes built-in constant current circuit for charging applications

• Conformal coating on PCBAs protect against chemical and dust pollutant

CHROME II series DIN-rail mounting, modular, Class II

The Chrome II series is designed for compact industrial and household applications. Featuring a slim DIN-rail form factor, these modular power supplies are ideal for installation in distribution boards, control cabinets, and household appliances.

• Suitable for OVC III applications

• High efficiency & low standby power consumption

• Class II double insulation (no earth connection required)

• Compact modular housing (same profile and cut-out as standard MCBs)

• Safety approval: IEC/EN/UL 60950-1 (ITE standard) and UL 508 (industrial standard)

• Household appliance approval: IEC/EN 60335-1, IEC/EN 61558-1/-2-16

Redundancy module built-in 2 channel DC OK signal and alarm relay contact

Redundancy modules provide additional protection against potential failure of the 24 VDC supply. Two power supplies are decoupled via a redundancy module which continually monitors the feeding power supply units and when one unit fails, automatically switches to the other.

• Wide input and output range of 22 - 60 VDC

• Includes built-in 2 channel DC OK signal and alarm relay contact

• Conformal coating on PCBAs to protect against common dust and chemical pollutants

DC-UPS module (without battery) suitable for 24V system up to 40A

• High MTBF > 500,000 hours per Telcordia SR-332

• Zero switchover time from loss of DC input to battery operation

• Built-in diagnostic monitoring for DC OK, discharge and battery fail by relay contacts

• Conformal coating on PCBAs to protect against common dust and chemical pollutants

• LED indicator: DC OK, Battery Charging, Battery Discharging, Battery Fail and Battery Reverse Polarit
