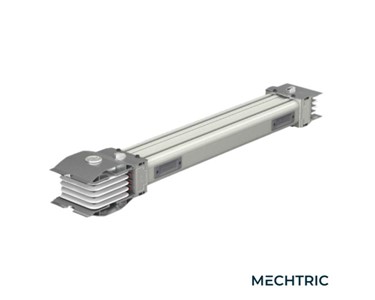

EAE - E-Line CCR Busbar Get latest price

Read more...

To contact Mechtric about EAE E-Line CCR Busbar use Get a quote.

IP68 Aluminium Housing Cast Resin Busbar (600A – 6300A)

Engineered for high-current power distribution in demanding environments, the E-Line CCR Busbar System combines superior mechanical endurance, exceptional heat transfer, and full IP68 protection. Designed to replace traditional cable systems, it ensures safe, efficient, and maintenance-free operation in outdoor and heavy industrial applications.

Specifications

• Current range: 600 A – 6300 A

• Housing: Aluminium housing encasing a DUROCOMP composite material made from pure silicium minerals and epoxy resin

• Conductors: Full-length, tin-plated aluminium or copper conductors

• Insulation: Epoxy-coated conductors with cast resin encapsulation

• Protection rating: IP68 – fully dust-tight and protected against continuous immersion

• Standards compliance: IEC 61439-6

• Compatibility: Fully compatible with E-Line KX Busbar modules

Key Features

• Superior Heat Dissipation: The composite DUROCOMP structure incorporates advanced heat-transfer additives, allowing efficient thermal management even under continuous high load.

• Exceptional Environmental Protection: IP68 rating ensures resistance to water, dust, and external contaminants, ideal for outdoor and harsh conditions.

• Corrosion and Chemical Resistance: Perfectly suited for chemical plants, marine, and offshore installations.

• Fire and Short-Circuit Resistance: Maintains operational integrity during fire events, offering high resistance to flame propagation and short-circuit forces.

• High Mechanical Strength: Designed to withstand mechanical stress, vibration, and external impact — maintaining reliability in critical environments.

• Cable Replacement Advantage: Reduces installation complexity, eliminates voltage drop concerns associated with long cable runs, and simplifies maintenance.

Applications

The E-Line CCR Busbar system is ideal for high-current, harsh-environment installations, including:

• Transformer-to-switchboard connections and main distribution lines

• Oil & Gas facilities

• Power plants and nuclear facilities

• Cement and chemical plants

• Harbours, shipyards, and marine environments

• Food processing facilities

• Tunnels, underpasses, and gallery transitions

• Outdoor installations in tropical or corrosive atmospheres
