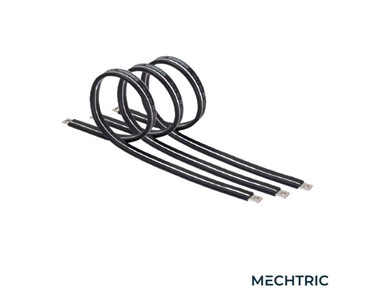

Teknomega - FLEXIBLE COPPER BRAIDED LINKS Get latest price

Read more...

To contact Mechtric about Teknomega FLEXIBLE COPPER BRAIDED LINKS use Get a quote.

The J-LINK and J-LINK PLUS series are ready-to-use flexible braided copper links, designed for fast, reliable, and maintenance-free electrical connections. Manufactured from high-purity tinned copper braid, these prefabricated shunts eliminate the need for cutting, stripping, lugging, or crimping — providing the quickest and most convenient solution for panel builders, switchgear manufacturers, and electrical installers.

Specifications

• Conductor material: Tinned electrolytic copper braid, Cu-ETP 99.9% purity (wire strand Ø 0.20 mm)

• Insulation (J-LINK PLUS): Self-extinguishing PVC UL94V-0, thickness 1.8 – 2 mm

• Rated current range: 125A – 630A

• Rated voltage: 1000 VAC / 1500 VDC

• Dielectric strength: 20 kV/mm

• Operating temperature: –40°C to +140°C

• Standard lengths: 330 mm – 1030 mm

• Available types:

  • J-LINK: Bare tinned copper braid

  • J-LINK PLUS: PVC-insulated version with blue scale for easy identification

Key Features

• Flexible and Vibration-Resistant: High-strand braided construction provides superior flexibility and vibration absorption, extending equipment life.

• Time-Saving Design: Fully prefabricated — no need for cutting, stripping, lug installation, or crimping.

• Enhanced Safety: Insulated J-LINK PLUS version offers additional protection against accidental contact and electrical arcing.

• High Conductivity: Manufactured from high-purity Cu-ETP copper for minimal resistance and maximum current transfer.

• Temperature and Flame Resistance: Operates reliably up to 140°C with self-extinguishing PVC insulation.

• Corrosion Protection: Tinned copper finish ensures long-term performance in humid or oxidising environments.

• Compact Installation: Ideal for tight spaces within control panels and switchboards.

Applications

• Switchboards and Control Panels – for main and auxiliary connections

• Busbar and Transformer Links – to absorb thermal expansion or vibration

• Generators and Inverters – providing flexible, low-resistance connections

• Industrial Machinery – for grounding or high-current bonding

• Power Distribution Systems – quick, modular installation without mechanical strain
