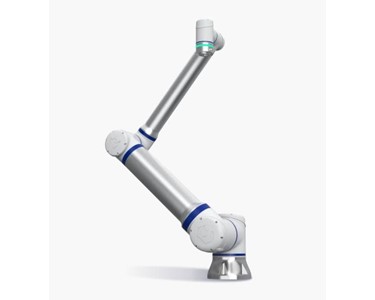

Collaborative Robot CS Series - CS530H Get latest price

Elite Robots' strongest cobot features a special architecture that makes it a perfect match for the CP series palletizing solution, lifting loads of up to 30 kg and reaching high stacking heights of up to 2300 mm. Empower your end-of-line operations and accelerate your ROI with the CS530H!

Specification:

• Payload - 30kg
• Radius - 1522mm‍
• Repeatability - ±0.1mm
• Axis - 5
• IP rating - IP65 (optional IP68)
• Temperature range - -10~50?
• Relative humidity - <90% (non-condensing)
• Typical power usage - 600w
• Tool I/O connector - T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports - 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply - 12V/24V, 3A (3 Pin mode), 2A (2 Pin mode),1A (single-pin mode)
• Tool I/O communication - RS485, Modbus RTU
• Footprint - Ø 240 mm
• Weight - 58 kg

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS530H use Get a quote.

Elite Robots' strongest cobot features a special architecture that makes it a perfect match for the CP series palletizing solution, lifting loads of up to 30 kg and reaching high stacking heights of up to 2300 mm. Empower your end-of-line operations and accelerate your ROI with the CS530H!

Specification:

• Payload - 30kg
• Radius - 1522mm‍
• Repeatability - ±0.1mm
• Axis - 5
• IP rating - IP65 (optional IP68)
• Temperature range - -10~50?
• Relative humidity - <90% (non-condensing)
• Typical power usage - 600w
• Tool I/O connector - T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports - 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply - 12V/24V, 3A (3 Pin mode), 2A (2 Pin mode),1A (single-pin mode)
• Tool I/O communication - RS485, Modbus RTU
• Footprint - Ø 240 mm
• Weight - 58 kg

Read less...

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS530H use Get a quote.
