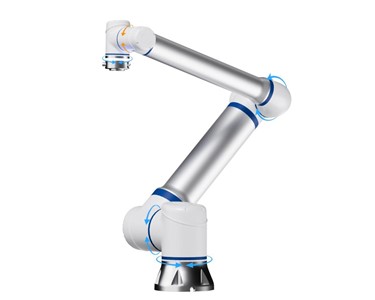

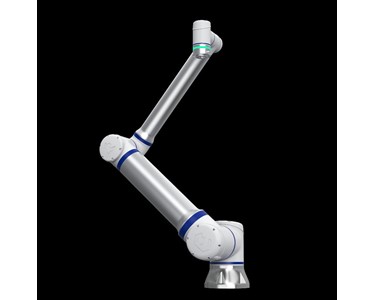

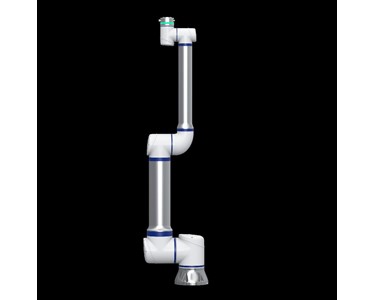

Elite Robots - CS530H Cobot Arm Get latest price

Read more...

To contact Elite Oceania Pty Ltd about Elite Robots CS530H Cobot Arm use Get a quote.

Specifications of this product

• Payload: 30kg
• Radius: 1522mm
• Repeatability: +/-0.1mm
• Axis: 5
• IP Rating: IP65 or IP68
• Temperature range: -10 - 50° C
• Relative humidity: <90% (non-condensing)
• Typical power usage: 600W
• Tool I/O connector: T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports: 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply: 12V/24V, 3A (Pin mode), 2A (2 Pin mode), 1A (single pin mode)
• Tool I/O communication: RS485, Modbus RTU
• Footprint: Ø 240mm
• Weight: 58kg
• Max speed: 4.0 m/s

Features of this product

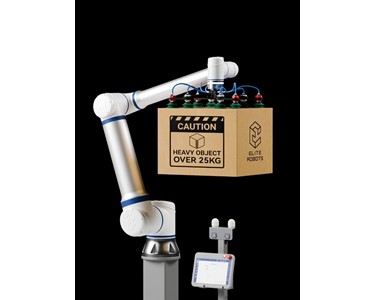

• The CS530H collaborative robot can lift loads of up to 30kg and reach high stacking heights of up to 2300mm.

Applications of this product

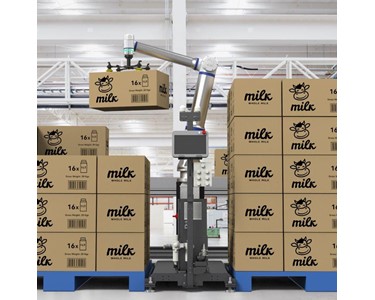

• Palletising

  • Based on a modular concept, the robot integrates two alternative bases with telescopic or fixed columns, along with independent and easy to maintain control units for the arm and system.
  • Equip your CS530H cobot arm with the best suction grippers on the market and start performing your palletising and de-palletising tasks.
  • The unit can support single and dual vacuum cups and can handle up to 7 boxes per minute (in single mode) and 14 boxes per minute (in dual mode).

Why choose this product

• Palletising solutions
• Dual boxing
• High stacking capacity
