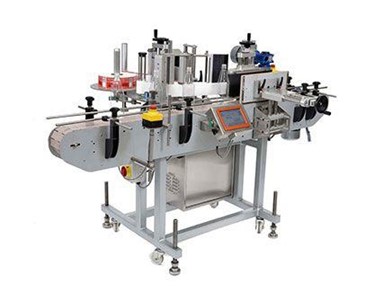

Tronics - Labelling System 30m/min | S1500 Get latest price

The S1500 gives you the benefit of a full specification Tronics labelling system with a limited budget. Incorporating the Tronics stepper motor label head with its proven track record.

The S1500 is completely synchronised - meaning the label head, conveyor and wrap move as one. In addition to Tronics off the shelf module system, Tronics offers engineered solutions to suit your unique needs and your unique operating environment.

Specifications

Maximum Dispensing Speed

30m/min

Minimum Dispensing Speed

5m/min

Label Reel Core Size

76mm inside diameter

Label Reel Outside Diameter

335mm max

Label Size Vertical

15mm - 215mm

Label Size Horizontal

20mm - 999mmm

Label Gap Size

2.5mm minimum

Label Stop Accuracy

+/- 0.5mm (on dispensing edge)

Right and Left Labelling Heads

Can be left, right, or both

Height Adjustment side

0mm - 260mm

Horizontal Adjustment

0mm - 150mm

Tilt Adjustment

+/- 8 degrees

To contact Aldus Tronics about Tronics Labelling System 30m/min | S1500 use Get a quote.
