Tronics - Heat Transfer Labeller 30m/min | S200 Get latest price

Read more...

To contact Aldus Tronics about Tronics Heat Transfer Labeller 30m/min | S200 use Get a quote.

Equipment Offerings

Tronics offers several standard HTD machinery configurations and specializes in heat transfer label equipment for large containers, 5 litres and larger.

Air, Electrical, Other Specifications for Tronics HTD System.

Streamlined Integration

Tronics has experience with tying these labeling systems in with other equipment upstream to form integrated turnkey systems, including in-line with injection molding equipment. Integration with injection molding machinery is a huge benefit eliminating the additional costs of having to use multiple people to decorate, handling product multiple times from the molder, to warehouse, to offset printer, and not having load and unload the offset printer with multiple people. Finally, another benefit is that there is no clean up involved when using rolls of heat transfer labels.

Heat Transfer Label Systems for Changing Market

With the explosion in warehouse shopping such as SAMS Club, Home Depot, Lowes, etc… the average consumer is buying more bulk product than ever before which means that competition on the store shelf no longer applies to smaller retail container packaging only. Tronics’ heat transfer decorating (HTD) technology has helped give our customers that offer products in large containers a competitive edge with a fantastic looking product package.

Specifications

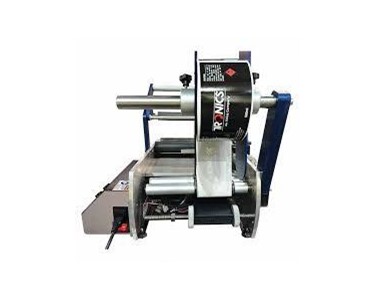

Tronics S200 Benchtop Labeller

Maximum Dispensing Speed

30m/min

Minimum Dispensing Speed

5m/min

Label reel core size

76mm inside diameter

Label reel outside diameter

335 maximum

Label size vertical

15mm – 215mm

Label size horizontal

20mm – 999mm

Label gap size minimum

2.5mm

Label stop accuracy

+/- 0.5mm (on dispensing edge)

Height adjustment side

870mm – 1185mm

Height adjustment overhead

900mm – 1050mm

Horizontal adjustment

0mm – 150mm

Tilt adjustment

+/- 8 degrees

Electrical

Single Phase 220/240 Volts @ 50/60 Hz 20-40 Amps. For pre and post flaming.

Air

14 CFM compressed air @ 75-100 PSI.

Gas

Constant Supply at 250 Cubic Feet/Hour of Natural Gas @ 8-13” W.C. Pressure.

Operation

Qty 1 fully detailed manual plus one CD must be provided with every machine.

Manuals should include

Set up procedure, PM program, Fault identification and rectification, Wear part / spare parts list, Wiring diagrams, Services specifications electric, air, gas.

Web Sizes and Copy

The web size will be no larger than 9”wide, larger web sizes can be accommodated with a larger decorating head but will need to be evaluated on case-by-case basis.

Performance

A decorating speed of 4-5PPM (based on 5 gallon pail with 180 deg. Orientation and 100% wrap).

Machine finish

The machine finish is mild steel powder coated, including frame, & electronics enclosure, transfer deck will be stainless steel.

Safety

All necessary safety features such as machinery guarding and emergency stops etc will be provided.

Specifications for the HSHTD Labeling Machinery Same as above except

Performance

A decorating speed of 7-9 PPM (based on 5 gallon pail with 180 deg. Orientation and 100% wrap)

Specifications for the FSHTD Labeling Machines Same as above except

Performance

A decorating speed of 8-10 PPM (based on 5 gallon pail with flat sides) Tronics customers have found that our labeling systems provide the best solution at the best value found on the market today. Whether your application is unique or not.
