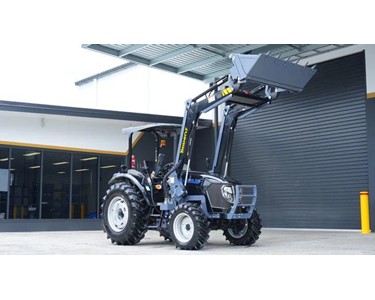

Canopy Tractor | Synchromesh Model 75Hp 4WD Price Guide: $36,990 Get latest price

Read more...

To contact Nicola's Machinery about Canopy Tractor | Synchromesh Model 75Hp 4WD use Get a quote.

The TRIDENT Plus series represents the pinnacle of tractor excellence, offering a superior driving experience, enhanced performance, greater durability, and increased comfort. Featuring a synchromesh/power-shift transmission, it’s the ideal choice for efficiency and ease of use. With TRIDENT tractors, you can now opt for a premium upgrade that delivers exceptional quality in every aspect.

Upgraded Features:

? The TRIDENT Plus Black Edition offers a significantly improved driving experience, enhanced performance, greater durability, and increased comfort, making it an outstanding choice for efficiency and ease of use.

? All gear selectors & pedals are noticeably lighter and smoother, providing a more effortless and refined shifting & operating experience.

? Synchromesh transmission 12 forward + 12 reverse shuttle shift

? Hydraulic down pressure powered 3-point linkage (external control for easier maneuver)

? 3-point linkage quick hitch hooks

? Heavy duty radial tyres

? Corrosion-resistant paint

? Advanced 3-point linkage adjustment design

? New LED digital dash that also displays driving speed!

? Adjustable rear wheel track

? Rust protection paint

Main features:

• 4WD & Diff Lock
• 1,000KG front end loader lifting capacity
• Heavy duty radial tyres: front 300/70R20; rear 420/85R28
• Quick hitch FEL with 4 in 1 bucket
• Premium joystick with solenoid  - 4 in 1 bucket control
• Grammer suspension seat
• Dual stage ceramic clutch plate
• Oil immersed breaking system
• Double oversized wheel weights
• Dual hydraulic pumps
• Power steering
• Two speed PTO (540/760 RPM)
• Dual rear remotes
• Euro hitch quick release front end loader (Quick park)
• Heavy duty chassis designed for front end loader work
• 4 cylinder naturally aspirated diesel engine
• Flat operators deck
• Seed guard for radiator

Specifications

Engine

• Engine model XINCHAI A4K43T75
• Engine type Diesel
• Engine gross power 55KW
• PTO power 52KW
• No. of cylinders 4-cylinder
• Rated speed 2400 RPM
• Battery 12V
• Alternator 14V/0.75KW
• Fuel tank capacity 80L (with auxiliary fuel tank)

Drivetrain

• Transmission: synchromesh shuttle shift 12F + 12R
• Steering: hydraulic power
• Brakes: wet brakes
• Clutch: double action
• PTO: 540/760 RPM

Hydraulic

• Hydraulic remotes two group at rear, one group at front
• Down pressure powered 3-point linkage with quick hitch hooks
• Total hydraulic flow 75L/MIN
• TPL cat II
• 3-point linkage lift capacity: 1,600KG

Dimensions

• Overall length (with bucket on the floor): 5,500MM
• Tractor length (without bucket): 4,000MM
• Overall width: 1,820MM - 2,120MM (adjustable)
• Overall height: 2,700MM
• Min. ground clearance: 375MM
• Gross weight with loader: 4,280KG
• Heavy duty radial tyres: front 300/70R20; rear 420/85R28
