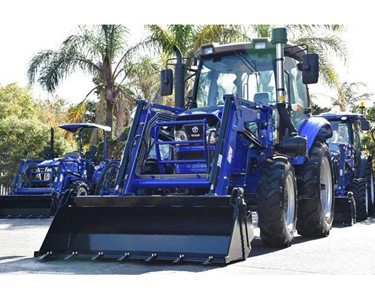

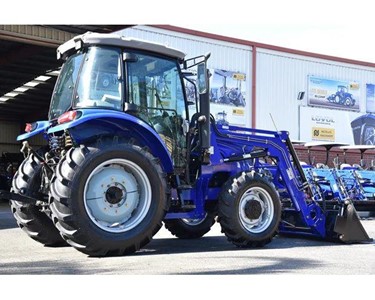

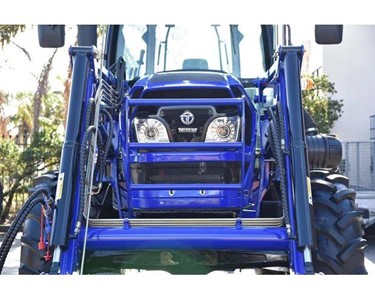

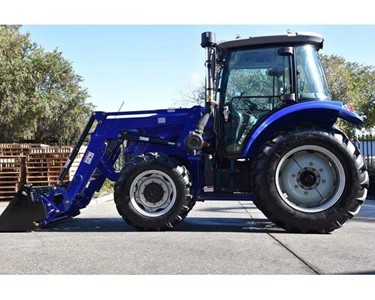

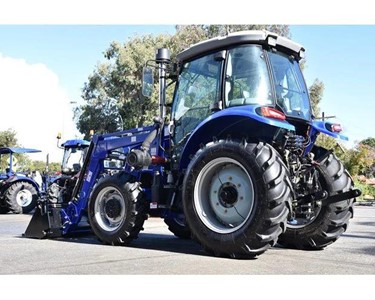

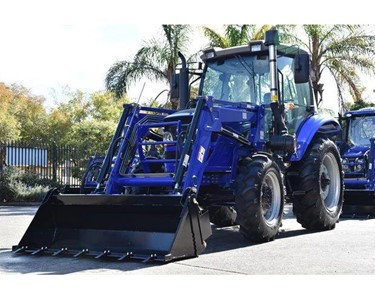

Cabin Tractor | 90Hp 4WD A/C Price Guide: $46,990 Get latest price

Read more...

To contact Nicola's Machinery about Cabin Tractor | 90Hp 4WD A/C use Get a quote.

Main Features:

• 1,200KG front end loader lifting capacity
• Gross weight 5,500KG
• 4WD & diff lock
• Hydraulic up & down 3-point linkage (with floating function)
• 16F+8R creeper gearbox
• 4 cylinder high torque engine
• Flotation tyres
• Rear weights
• Clear flat platform
• Air seat
• Full lighting
• 3 rear remotes
• Down pressure 3 point linkage

Specifications

Engine

• Engine: 4 Stroke, Fuel Injected, Diesel Engine, Vertical Bore
• Engine Displacement: 4.578L
• Number of Cylinders: 4
• Engine Orientation: Longitudinal
• Rated Engine Power: 90 HP (67/2300 Kw/ PRM)
• Air Filter: Dry
• Top Nominal Speed: 34.85 Km/h
• Fuel: Diesel
• Fuel Tank Capacity: 140 Litres
• Fuel Consumption: 235 g/kWh
• Cooling: Water Cooled

Drivetrain

• Transmission: 16F+8R
• Clutch: 12inch Dual Functional LUK Clutch with Metal Ceremic Frication Plate
• Drive: Rear Wheel Drive with selectable 2WD / 4WD and
• Differential Lock
• Differential: Closed, Planetary Reduction Bevel Gears
• Differential Lock: Tooth Inlaid Type
• Transfer Case: Helical Bevel Gears

Hydraulic

• Hydraulic remotes: three groups at rear 3PL, one group at FEL
• Hydraulic up & down pressure power 3-point linkage (with floating function)
• TPL cat: II
• Total hydraulic flow: 50L/MIN
• 3PL cat II lift capacity: 2,200KG max

Dimensions

• Tractor with loader: 5,500 Kg
• Wheelbase: 2205 mm
• Tractor Length: 5,900 mm
• Tractor Width: 2,100 mm
• Tractor Height: 2,960 mm
• Turning Circle: 4.9±0.2 m
• Ground Clearance: 405 mm

Read less...

To contact Nicola's Machinery about Cabin Tractor | 90Hp 4WD A/C use Get a quote.
