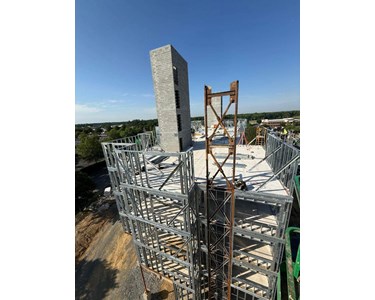

KFS Framemaker Roll Forming Machine Project
Scottsdale Construction Systems - KFS Framemaker Roll Forming Machine

The KFS Framemaker Roll Formers are advanced steel framing machines designed for efficient and precise structural light gauge steel (LGS/CFS) fabrication in both commercial and residential applications.

Description
Documents
High-speed structural steel framing with multi-profile automation and precision.
Contact us for availability

The KFS Framemaker Roll Formers are high-performancemachines engineered for the production of load-bearing steel frame components.Ideal for stud and track suppliers, off-site construction, modular andpanelised building contractors, and both residential and commercialfabricators, they are optimised for the demands of structural steel framing.

Key Features

  • Proven high reliability and performance speed, processing up to 2,200 m/hr with servo drive and supporting steel coil yield strengths up to 450 MPa and tensile strengths up to 520 MPa.
  • Advanced precision from hydraulic cut-off and punch tools, plus a servo drive system.
  • Efficient process management with an integrated digital batch controller.
  • Multi-profile capability: forms various web widths and flange heights in 0.75mm – 2.7mm steel.
  • Automated feeding, cutting and punching increase productivity.
  • Meets ASTM A1008 and ASTM 653 standards for Grade 33 structural steel.
  • Compatible with leading control software including Strucsoft MWF, ScotSteel, Framebuilder MRD, and Vertex.

KFS Framemaker Models & Key Specifications

Model

Steel Gauge (mm)

Web Width Options (mm)

Flange Width Options (mm)

Warranty

Decoiler Capacity (kg)

Batch Control

1218G1 / 1218G2

1.1 – 2.7

152, 203, 254, 305

51, 63.5, 76, 89

1 (G1) / 2 (G2) years

2,950 (G1), 4,500 (G2)

Digital controller / Advanced management option (EclipsePRO)

1420G1 / 1420G2

0.84 – 1.9

92, 102, 152, 203, 254, 305

41, 51, 63.5

1 (G1) / 2 (G2) years

2,950 (G1, G2)

Digital controller / Advanced management option (EclipsePRO)

1622G1 / 1622G2

0.75 – 1.5

89, 92, 102, 140, 152, 203

41, 51, 63.5

1 (G1) / 2 (G2) years

2,950 (G1), 2,950 (G2)

Digital controller / Advanced management option (EclipsePRO)

Standard Features (model dependent)

  • Multi-profile roll-forming cage with quick-adjustment.
  • Standard or profile-specific shear blade and die kits.
  • Beck Automation SII or AMS advanced control systems.
  • Powered decoiler with automated feed speed control.
  • Flange dimpling punch, web service hole and adjustable punch toolkits for versatile steel processing.
  • Optional inkjet labelling printer, spare parts kit, basic or advanced production management software.
  • All models support SFIA / SSMA / CSSBI standard profiles.


More Information:

Project example: https://www.scottsdalesteelframes.com/case-studies/the-element-hotel-in-virginia-by-us-frame-factory

Videos: https://www.scottsdalesteelframes.com/resources/videos?_keyword_search=kfs%20framemaker%20

Financing Options: https://www.scottsdalesteelframes.com/scottsdale-machines/roll-forming-machine-financing-and-lead-times-all-you-need-to-know

Why Scottsdale Construction Systems: https://www.scottsdalesteelframes.com/operations/steel-framing-business-capitalizing-on-the-2032-market-growth
