Scottsdale Construction Systems - KFD Framemaker Roll Forming Machines

Supplier: Scottsdale Construction Systems
Scottsdale Construction Systems - KFD Framemaker Roll Forming Machines
KFD Framemaker 2025 Roll Forming Machine
Scottsdale Construction Systems - KFD Framemaker Roll Forming Machines
KFD Framemaker 2025 Roll Forming Machine
Scottsdale Construction Systems - KFD Framemaker Roll Forming Machines
KFD Framemaker Roll Forming Machines
Scottsdale Construction Systems - KFD Framemaker Roll Forming Machines

The KFD Framemaker Roll Formers are advanced roll forming machines designed to deliver precision and efficiency for non-structural steel framing applications.

Description
Documents
Achieves up to 36 metres per minute for high-speed, precise non-structural steel framing.
Contact us for availability


Highlights

  • Capable of up to 36 metres per minute with an electric servo drive, handling steel yield strength up to 448 MPa and tensile strength up to 517 MPa
  • Hydraulic cut-off and punch tools for precise operations
  • Integrated digital batch controller for improved process efficiency
  • Custom hole punches (service, index, anchor) for versatile applications
  • Meets ASTM A1008 and ASTM 653 standards for Grade 33 structural steel
  • Compatible with Strucsoft MWF, ScotSteel, Framebuilder MRD, Vertex software

Models

  • KFD Framemaker 2025G1
    • Standard tool kit and 1-year warranty
    • Power: 400V/60 Hz/3 Phase or 380V/50 Hz/3 Phase
    • Standard power train, manual adjustment
    • 4,500 kg decoiler
    • Web service hole punch toolkits: 19 x 38 mm and 38 x 76 mm
    • Gauges: 0.5-0.8 mm (non-structural)
    • Web sizes: 41, 64, 92, 102, 152 mm
    • Maximum track flange width: 38 mm
    • Single profile flange: 32 mm
    • Flange knurling, section stability corner stiffeners
  • KFD Framemaker 2025G2
    • Standard tool kit and 2-year warranty
    • Power: 400V/60 Hz/3 Phase or 380V/50 Hz/3 Phase
    • AMS control system with ScotRF interoperability
    • Manual rollformer adjustment
    • 6,500 kg decoiler
    • Flange dimpling, track slotting, and inkjet labelling printer
    • Spare parts kit (2-year supply)
    • Gauges: 0.5-0.8 mm (non-structural)
    • Web sizes: 41, 64, 92, 102, 152 mm
    • Maximum track flange width: 51 mm
    • Single profile flange: 32 mm
    • Flange knurling, section stability corner stiffeners

General Specifications

Model

Thickness Range

Powertrain

Decoiler

Warranty

2025G1

0.68-1.1 mm

5.5 kW, up to 2,200 m/hr

3,300 kg

1 year

2025G2

0.68-1.1 mm

Enhanced 5.5 kW, up to 1,800 m/hr

6,500 kg

2 years

Software & Compatibility

  • Compatible with Strucsoft MWF, ScotSteel, Framebuilder MRD, Vertex
  • AMS control system integration (2025G2)
  • Support for ScotRF, roll former production software

Key Applications

  • Stud and track suppliers

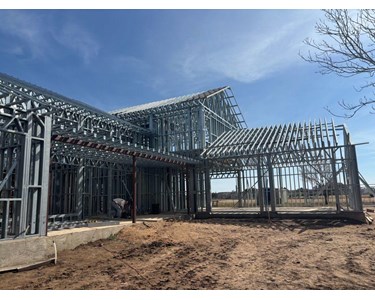

  • Drywall and curtainwall framing
  • Wall and ceiling applications in commercial build-outs, panelised construction, and various steel framing projects


More Information:

Read - Drywall and Curtainwall Delivered withThin-Section KFD 2025Machine: https://www.scottsdalesteelframes.com/scottsdale-machines/drywall-and-curtainwall-framing-delivered-with-kfd-framemaker-2025

Financing Options: https://www.scottsdalesteelframes.com/scottsdale-machines/roll-forming-machine-financing-and-lead-times-all-you-need-to-know

Why Scottsdale Construction Systems: https://www.scottsdalesteelframes.com/operations/steel-framing-business-capitalizing-on-the-2032-market-growth

Read more...

To contact Scottsdale Construction Systems about Scottsdale Construction Systems KFD Framemaker Roll Forming Machines use Get a quote.
