Nante - NHA Series Wire Rope 3.2T Hoist & Trolley Price Guide: $14,394 Get latest price

Read more...

To contact Hydromech Hoist and Crane about Nante NHA Series Wire Rope 3.2T Hoist & Trolley use Get a quote.

We understand you might not be a hoist manufacturer who understands the pitfalls of purchasing a hoist from overseas without 50 years of ACTUALLY MANUFACTURING them right here in Australia, to Australian Standards.

We get that it’s scary buying something that could be very dangerous, to your people, your capital equipment and ultimately your bottom line.

We run a business – we know purchasing an asset isn’t done without consideration for the cost.

It’s OK not to have years to spend with a partner overseas developing a product fit for use where you operate.

We are manufacturers, so the pain of equipment not being reliable and costing you money…and sleep…is one we’ve experienced.

That’s why we spent years working with a reliable and powerful production team – Nante Cranes, so they can offer you a product that is compliant, safe, reliable, affordable, supported with spare parts locally, and is AVAILABLE TO SHIP TODAY!

We’re here to help saleshydromech

Hydromech are the sole Australian Distributors for Nante Crane Components, proudly in partnership for any project size.

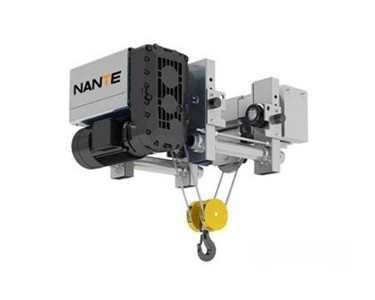

NHA series electric wire rope hoist is NANTE’s new generation hoist. There are many more variations of hoists at different specs available. Significant advantages of this hoist series include:

• Compact Design
• Low Noise
• Low Power Consumption
• Easy Installation
• Safe Operation
• Easy Maintenance

NANTE products offer low headroom, fixed type, monorail type and double girder designs for unique applications. Additionally, NANTE can provide customised designs including advanced functions such as anti-sway, automatic running, and data logger etc.

Key Features Include:

• Combined Engineering between Nante & Hydromech to ensure the hoist is designed to meet Australian Standards.
• Adheres to international design codes including FEM, CMAA, EN ISO.
• Top quality gear motor with IP55, F class and electromagnetic brake (Can be upgraded to IP66 & H class)
• High performance and high strength galvanized wire roping provides safe operation and long service life.
• Heavy Duty T Class alloy steel enforced hook with 360° rotation and an ergonomic design.
• IP55 enclosure with socket for easy operation (follows IEC standard, can be upgraded to IP65) – All electrics designed and manufactured to Australian Standards.
• SA2.5 class surface - pre-treated by shot blasting. C3-C5 painting system according to ISO 12944-5.
• Overload limiter, over-heat protection, over-current protection, up/down position limiter, phase relay, and other optional functions such as data logger, LED load displayer, etc.

Key Specifications:

• Brand: Nante
• Model: NHA3.2t-9m-4/1-M5
• Rated Capacity: 3.2T
• Class: M5
• Hoist Speed: 4.8/0.8 m/min
• Hoist Motor: SEW G67 3.6/0.55kW
• Duty: 30/15%
• Load Limiter: Yes.
• HOL: 9.0 metres available
• Reeving: 4/1
• Flange: 150-300mm Max
• Trolley Speed: 20/5 m/min (RF17-0.37, 0.64kW) Inverter Control
• Control Electrics: Yes.
• Control: By client.
• CT Limit: Yes.
• Environment: Indoors - Non Aggressive
• Supply Voltage: 415V AC 3Ph 50Hz
• Control Voltage: 48V AC
• Protection/Class: IP55/F

Contact Us for more information regarding our products and services. We welcome all enquiries about hoists, overhead cranes and crane kits and we are here to assist you with all your needs and requirements. Hydromech are the trusted choice.
