Hoist & Hi-lift Trolley JLP 5T 3.2-25 ...

Hoist & Hi-lift Trolley JLP 5T 3.2-25 Tonne | EKP50MES-Y2-R4/1 Price Guide: $23,705

Supplier: Hydromech Hoist and Crane

Hoist & Hi-lift Trolley JLP 5T 3.2-25 Tonne | EKP50MES-Y2-R4/1

This hoist is a tank. And it's in stock ready to buy today. We'll guarantee it for 2 years, so you can concentrate on actually running your business.

Receive 1-3 days from order

If you need reliable performance so you can produce without worrying about your hoist, you're in the right spot.

Specs below and you can ring us with any clarifications:

Brand: Hydromech/JLP
Model: EKP50MEs-Y2-R4/1
Rated Capacity: 5 Tonne
Class: M5
Hoist Speed: 4.3/0.66 m/min
Geared Motor Drive: SEW G77 6.1/0.9kW
Duty: 30/15%
Data Logger: No. (Option Available)
Load Limiter: Yes.
HOL: 8.7 metres available
Reeving: 4/1
Flange: TBC 350mm x 20mm
Beam Height: TBC
Trolley Speed: 20/5 m/min (Inverter Control)

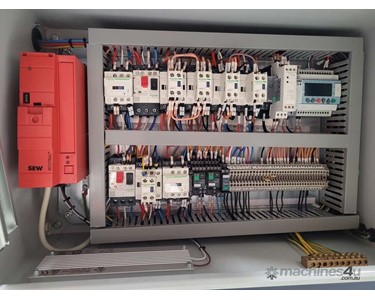

Control Electrics: Yes.
Control: By client
CT Limit: Yes, Die Cast Al. IP66
Environment: Indoors-Non Aggressive
Supply Voltage: 415V AC 3Ph 50Hz
Control Voltage: 48V AC
Protection/Class: IP55 / “F”

Hydromech Hoist and Crane Pty Ltd. has been involved in the supply and assembly of products used in the hoist and overhead crane industry and associated service industry since 1963.

The “View Brochure” button on this advertisement allows you to download our detailed enquiry form. This form will help you indicate what you require, so we can streamline the service we offer you. Please take the time to complete the form and send it to us using the contact details on the form. Or – you may contact us off this advertisement. We welcome your business.

Hydromech Hoist and Crane Pty Ltd has a large sales listing, which includes supplying a select range of crane hoist sales and crane and hoist products to service providers. These providers are located predominantly in Australia, but it also includes supplying to countries such as Singapore, Malaysia, Fiji, the middle east and USA and New Zealand.

Hydromech Hoist and Crane Pty Ltd supplies a standard range of JLP hoists and bespoke custom lifting solutions. It provides on-hand spares to ensure our clients are well-supported beyond the point of purchase.

Various Models available:

Models/Capacity

EKP32MDA-Y2-R41/ 3.2TONNE

EKP50MES-Y2-R41/ 5 TONNE

EKP50MFB-Y3-R41/ 5 TONNE

EKP63MES-Y2-R41/ 6.3 TONNE

EKP100MGB-Y3-R41/ 10 TONNE

EKP200MHA-Y3-R41/ 20 TONNE

EKP250MJA-Y3-R41/ 25 TONNE

To contact Hydromech Hoist and Crane about Hoist & Hi-lift Trolley JLP 5T 3.2-25 Tonne | EKP50MES-Y2-R4/1 use Get a quote.

If you need reliable performance so you can produce without worrying about your hoist, you're in the right spot.

Specs below and you can ring us with any clarifications:

Brand: Hydromech/JLP
Model: EKP50MEs-Y2-R4/1
Rated Capacity: 5 Tonne
Class: M5
Hoist Speed: 4.3/0.66 m/min
Geared Motor Drive: SEW G77 6.1/0.9kW
Duty: 30/15%
Data Logger: No. (Option Available)
Load Limiter: Yes.
HOL: 8.7 metres available
Reeving: 4/1
Flange: TBC 350mm x 20mm
Beam Height: TBC
Trolley Speed: 20/5 m/min (Inverter Control)
Control Electrics: Yes.
Control: By client
CT Limit: Yes, Die Cast Al. IP66
Environment: Indoors-Non Aggressive
Supply Voltage: 415V AC 3Ph 50Hz
Control Voltage: 48V AC
Protection/Class: IP55 / “F”

Hydromech Hoist and Crane Pty Ltd. has been involved in the supply and assembly of products used in the hoist and overhead crane industry and associated service industry since 1963.

Various Models available:

Models/Capacity

EKP32MDA-Y2-R41/ 3.2TONNE

EKP50MES-Y2-R41/ 5 TONNE

EKP50MFB-Y3-R41/ 5 TONNE

EKP63MES-Y2-R41/ 6.3 TONNE

EKP100MGB-Y3-R41/ 10 TONNE

EKP200MHA-Y3-R41/ 20 TONNE

EKP250MJA-Y3-R41/ 25 TONNE

Read less...

To contact Hydromech Hoist and Crane about Hoist & Hi-lift Trolley JLP 5T 3.2-25 Tonne | EKP50MES-Y2-R4/1 use Get a quote.
