Helix Flexible Screw Conveyor

Helix - Flexible Screw Conveyor

Supplier: Noggrann

Flexible Screw Conveyor

1/4

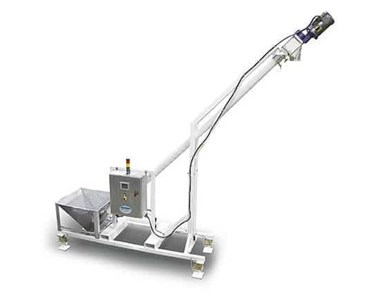

The Helix Flexible Screw Conveyor provides batch, intermittent or continuous bulk conveying, with a single moving part and tool-free washdowns in under 5 minutes.

Doses and conveys powders, crystals, pellets, friable material, flakes and granules horizontally or vertically.

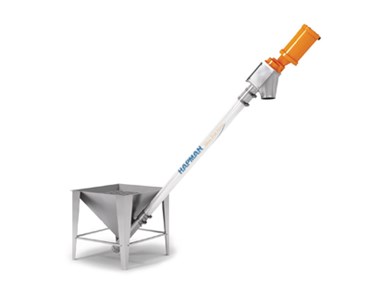

A single helicoid screw rotates inside a fixed tube, with one moving part in the standard Helix, fewer components and a single drive point to minimise maintenance.
Stainless steel construction withstands a continuous flow of abrasive materials.
Low-speed operation with a flexible or rigid plastic tube allows routing around fixed obstacles and conveying at steep inclines.
An economical, lower-cost option compared with complex pneumatic or bucket elevator systems.

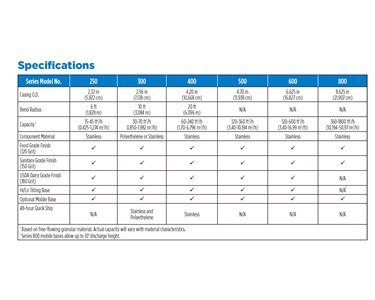

Specification	Value
Conveying distance	up to 80 ft (24.4 m)
Discharge heights	up to 40 ft (12.2 m)
Inclines	more than 45 degrees
Screw conveyor model nominal case diameter	3 to 8 inches (7.6 cm to 20.32 cm)
Average capacity ranges	014 m3/min to .707 m3/min
LIW discharge height	3.66 m
Hi/Lo discharge height	up to 12 ft (3.66 m)
Hopper material options	304 or 316 stainless steel
Batch changeover cleaning times	under 5 minutes

Quick-release end cap and heavy-duty U-bolt assembly allow the inner coreless screw auger to be uncoupled and fully withdrawn from the bottom without tools.
The food-grade tube can be flushed and sanitised without special tools or ladders.
No internal bearings, hangers or crevices where powders can lodge, leaving no blind spots for bacterial growth or residual powders.
Smooth stainless steel contact surfaces support washdowns and compliance with strict Australian food, dairy and pharmaceutical sanitary standards.

Supports batch changeovers and stringent sanitation requirements.

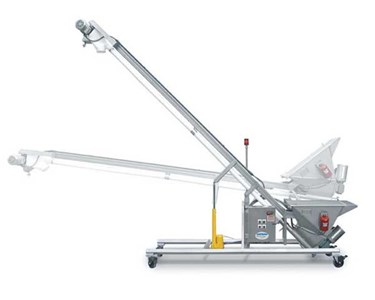

Electric actuator automatically lowers the auger to an accessible cleaning height; the Hi-Lo option also supports screw auger change-out.
Fully assembled conveyor fits through standard-height doors for room-to-room movement.

Fully automated dosing with programmable logic and system integration tie-in functionality.
Load cells integrated into the hopper base precisely measure material weight during operation.
Can be combined with Gravimetric Feeders.
Transports material to an elevated point while maintaining the required flow rate; batching automates precisely dosed quantities and supports continuous conveying.
Options include stainless steel hoppers, flexible connections, automated and manual discharge, and shut-off valves.

The pushing and tumbling action is not ideal for highly fragile or friable materials, including delicate cereals or snack foods that may break down or degrade during transfer.

Doses and conveys powders, crystals, pellets, friable material, flakes and granules horizontally or vertically.
A single helicoid screw rotates inside a fixed tube, with one moving part in the standard Helix, fewer components and a single drive point to minimise maintenance.
Stainless steel construction withstands a continuous flow of abrasive materials.
Low-speed operation with a flexible or rigid plastic tube allows routing around fixed obstacles and conveying at steep inclines.
An economical, lower-cost option compared with complex pneumatic or bucket elevator systems.

Specification	Value
Conveying distance	up to 80 ft (24.4 m)
Discharge heights	up to 40 ft (12.2 m)
Inclines	more than 45 degrees
Screw conveyor model nominal case diameter	3 to 8 inches (7.6 cm to 20.32 cm)
Average capacity ranges	014 m3/min to .707 m3/min
LIW discharge height	3.66 m
Hi/Lo discharge height	up to 12 ft (3.66 m)
Hopper material options	304 or 316 stainless steel
Batch changeover cleaning times	under 5 minutes

Quick-release end cap and heavy-duty U-bolt assembly allow the inner coreless screw auger to be uncoupled and fully withdrawn from the bottom without tools.
The food-grade tube can be flushed and sanitised without special tools or ladders.
No internal bearings, hangers or crevices where powders can lodge, leaving no blind spots for bacterial growth or residual powders.
Smooth stainless steel contact surfaces support washdowns and compliance with strict Australian food, dairy and pharmaceutical sanitary standards.

Supports batch changeovers and stringent sanitation requirements.
Electric actuator automatically lowers the auger to an accessible cleaning height; the Hi-Lo option also supports screw auger change-out.
Fully assembled conveyor fits through standard-height doors for room-to-room movement.

Fully automated dosing with programmable logic and system integration tie-in functionality.
Load cells integrated into the hopper base precisely measure material weight during operation.
Can be combined with Gravimetric Feeders.
Transports material to an elevated point while maintaining the required flow rate; batching automates precisely dosed quantities and supports continuous conveying.
Options include stainless steel hoppers, flexible connections, automated and manual discharge, and shut-off valves.

The pushing and tumbling action is not ideal for highly fragile or friable materials, including delicate cereals or snack foods that may break down or degrade during transfer.
