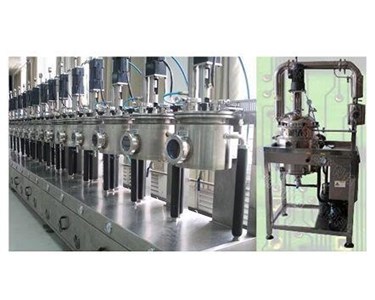

The EX-TE series multifunctional fermentation tank offers high automation, built-in heating and pH monitoring for ingredient preparation, yoghurt fermentation and other processes.

high degree of automation

Specification	Value
Series	EX-TE series
Models based on volume	EX-TE-03, 05, 10, 30, 50, 100, 200, 300, 500
Effective volumes	nine effective volumes, from 3 litres up to 500 litres
Tank design pressure	0.09 MPa
Interlayer design pressure	0.3–0.4 MPa
Expandable batch processing	reserve slots for 5, 10, or 20 simultaneous sets

Multifunctional tank offering high efficiency, ease of operation and a high degree of automation.
Designed for ingredient preparation, yoghurt fermentation and processes requiring precise heating, cooling and pH monitoring.
Customisable tank sizes; supports small R&D batches through to larger pilot-production runs without changing equipment platforms.
Centralised controller for efficient control, with high-quality materials for durability.
Three-layer insulation with an open structure for enhanced thermal efficiency.
Built-in heating eliminates external heating requirements, distributes heat uniformly across the tank body and bottom, and reduces hot spots associated with external or point-source heating.
Low liquid level protection ensures heater safety and longevity.
Surrounding interlayer jacket supports heating or cooling. Its higher pressure enables efficient heat transfer through steam or thermal fluid without over-pressurising the product chamber.
Expandable processing supports parallel fermentation trials without separate tank systems for each batch.

Real-time control and display of extraction and heating temperatures.
Online test data detection provides precise process control and a full data record for each run, covering:
Extraction temperature
Working time
pH level
Vacuum pressure
Stirring speed and type
High and low liquid levels

Enhances plant cell breakdown through cavitation.
Improves solute particle separation through vibration, acceleration impact and sound pressure shear.
Specialised ultrasonic generator with frame stirring ensures thorough contact between Chinese medicinal materials and the ultrasonic probe.
Achieves higher extraction efficiency than traditional methods while preserving heat-sensitive components.
