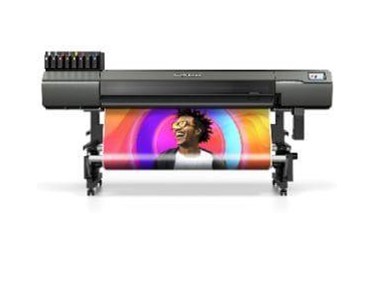

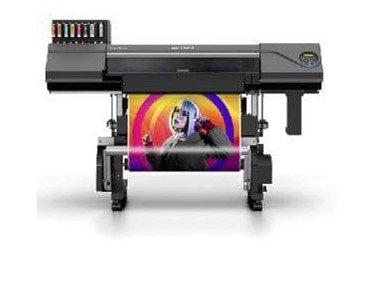

UV Printer Machine | TrueVIS LG & MG Series

Supplier: Prytec Solutions

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG and MG series add a new dimension to graphics printing.

Receive 1-3 days from order

The Roland DG LG & MG Series – a cutting-edge line of printer cutters designed to elevate your printing and graphics capabilities. These printers are meticulously enhanced to meet the demands of today's sign and graphics providers. Elevate your business with the innovation and reliability of the Roland DG LG & MG Series.

Specifications:

LG Series

Model			LG-640	LG-540	LG-300
Printing method			Piezo ink-jet method
Media	Width		335 to 1625 mm (13.2 to 64 in.)	295 to 1371 mm (11.7 to 54 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 250 mm (9.8 in.)
	Roll weight		Max. 45 kg (99 lb.)	Max. 35 kg (77 lb.)	Max. 30 kg (66 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1			Max. 1600 mm (62.9 in.)	Max. 1346 mm (52.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5P) 750ml pouch
	Colours		Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1200 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2			30 to 500 gf
Blade	Type		Roland DG CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Media heating system 3			Front heater set temperature: 30 to 55 ? (86 to 131 °F)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A
Power consumption	During operation		Approx. 800 W	Approx. 800 W	Approx. 650 W
	Sleep mode		Approx. 85 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		58 dB (A) or less
Dimensions (with stand)			2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.)	2648 mm x 748 mm x 1412 mm (104.3 in. x 29.5 in. x 55.6 in.)	2038 mm x 748 mm x 1412 mm (80.3 in. x 29.5 in. x 55.6 in.)
Weight (with stand)			209 kg (461 lb.)	198 kg (395 lb.)	168 kg (371 lb.)
Environment	During operation 4	Temperature : 20 to 32 ? (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature : 5 to 40 ? (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)

MG Series

Model			MG-640	MG-300
Printing method			Piezo ink-jet method
Media	Width		210 to 1625 mm (8.3 to 64 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 210 mm (8.2 in.)
	Roll weight		Max. 40 kg (88 lb.)	Max. 25 kg (55 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1			Max. 1600 mm (62.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
	Colours		Eight colours (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colours (cyan, magenta, yellow, black, red, orange, white) Seven colours(cyan, magenta, yellow, black, red, orange, white) and primer Seven colours(cyan, magenta, yellow, black, red, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) Four colours(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1440 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2			30 to 500 gf
Blade	Type		Roland DG CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-240 Va.c. 50/60Hz 2.8 A	100-240 Va.c. 50/60Hz 2.7 A
Power consumption	During operation		Approx. 250 W	Approx. 240 W
	Sleep mode		40 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		53 dB (A) or less
Dimensions (with stand)			2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.)	1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand)			163 kg (360 lb.)	125 kg (276 lb.)
Environment	During operation 3	Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
	Not operating	Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)

LG Series

Model			LG-640	LG-540	LG-300
Printing method			Piezo ink-jet method
Media	Width		335 to 1625 mm (13.2 to 64 in.)	295 to 1371 mm (11.7 to 54 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 250 mm (9.8 in.)
	Roll weight		Max. 45 kg (99 lb.)	Max. 35 kg (77 lb.)	Max. 30 kg (66 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1			Max. 1600 mm (62.9 in.)	Max. 1346 mm (52.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5P) 750ml pouch
	Colours		Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1200 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2			30 to 500 gf
Blade	Type		Roland DG CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Media heating system 3			Front heater set temperature: 30 to 55 ? (86 to 131 °F)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A
Power consumption	During operation		Approx. 800 W	Approx. 800 W	Approx. 650 W
	Sleep mode		Approx. 85 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		58 dB (A) or less
Dimensions (with stand)			2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.)	2648 mm x 748 mm x 1412 mm (104.3 in. x 29.5 in. x 55.6 in.)	2038 mm x 748 mm x 1412 mm (80.3 in. x 29.5 in. x 55.6 in.)
Weight (with stand)			209 kg (461 lb.)	198 kg (395 lb.)	168 kg (371 lb.)
Environment	During operation 4	Temperature : 20 to 32 ? (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature : 5 to 40 ? (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)

MG Series

Model			MG-640	MG-300
Printing method			Piezo ink-jet method
Media	Width		210 to 1625 mm (8.3 to 64 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 210 mm (8.2 in.)
	Roll weight		Max. 40 kg (88 lb.)	Max. 25 kg (55 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1			Max. 1600 mm (62.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
	Colours		Eight colours (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colours (cyan, magenta, yellow, black, red, orange, white) Seven colours(cyan, magenta, yellow, black, red, orange, white) and primer Seven colours(cyan, magenta, yellow, black, red, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) and primer Six colours(cyan, magenta, yellow, black, white, gloss) Four colours(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1440 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2			30 to 500 gf
Blade	Type		Roland DG CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-240 Va.c. 50/60Hz 2.8 A	100-240 Va.c. 50/60Hz 2.7 A
Power consumption	During operation		Approx. 250 W	Approx. 240 W
	Sleep mode		40 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		53 dB (A) or less
Dimensions (with stand)			2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.)	1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand)			163 kg (360 lb.)	125 kg (276 lb.)
Environment	During operation 3	Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
	Not operating	Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)

Read less...

To contact Prytec Solutions about UV Printer Machine | TrueVIS LG & MG Series use Get a quote.

Datasheet_TrueVIS_MG_DAS_web(0.14MB)

Datasheet_TrueVIS_LG_DAS_web(0.14MB)
