Roland DG - Large Format Printer Machine 7″ LCD Touch | TrueVIS VG3 Series

Supplier: Prytec Solutions

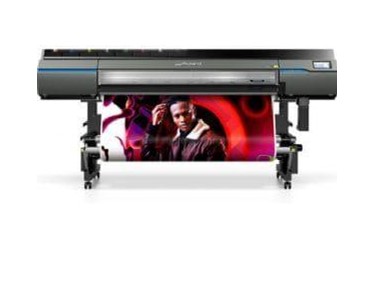

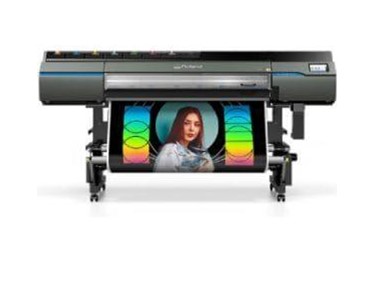

Large Format Printer Machine 7″ LCD Touch | TrueVIS VG3 Series

When sign and graphics experts sought further advancements in the already award-winning TrueVIS printer cutter technology, renowned for its unmatched image quality, we stepped up to the challenge.

Receive 3-7 days from order

We’ve bolstered the TrueVIS VG3 printer cutters with automated functions, improved user-friendliness, and expanded color options, elevating them to surpass even higher standards in print quality, productivity, and the demanding requirements of today’s sign and graphics professionals.

The Roland DG VG3 Series – a cutting-edge line of printer cutters designed to elevate your printing and graphics capabilities. These printers are meticulously enhanced to meet the demands of today's sign and graphics providers. Elevate your business with the innovation and reliability of the Roland DG VG3Series.

Specifications:

Model		VG3-640	VG3-540
Printing Method		Piezo ink-jet method
Media	Width	13.2 to 64 in. (335 to 1,625 mm)	11.7 to 54 in. (297 to 1,371 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)	Max. 77 lb. (35 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cuttin width (*1)		Max. 62.9 in. (1,600 mm)	Max. 52.9 in. (1,346 mm)
Ink	Type	TrueVIS INK 500 ml pouch (only white 250 ml)
	Colours	Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white) Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange) Eight colours (cyan, magenta, yellow, black, light black, orange, green and white) Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green) Seven colours (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A
Power consumption	During operation	Approx. 1,090 W
	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 52.0 in. (2,886 mm x 748 mm x 1,320 mm)	103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
Weight		448 lb. (203 kg)	417 lb. (189 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software (VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment(Use in an operating environment within this range.)

Humidity vs Temperature

To contact Prytec Solutions about Roland DG Large Format Printer Machine 7″ LCD Touch | TrueVIS VG3 Series use Get a quote.

Specifications:

Model		VG3-640	VG3-540
Printing Method		Piezo ink-jet method
Media	Width	13.2 to 64 in. (335 to 1,625 mm)	11.7 to 54 in. (297 to 1,371 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)	Max. 77 lb. (35 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cuttin width (*1)		Max. 62.9 in. (1,600 mm)	Max. 52.9 in. (1,346 mm)
Ink	Type	TrueVIS INK 500 ml pouch (only white 250 ml)
	Colours	Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white) Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange) Eight colours (cyan, magenta, yellow, black, light black, orange, green and white) Eight colours (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green) Seven colours (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A
Power consumption	During operation	Approx. 1,090 W
	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 52.0 in. (2,886 mm x 748 mm x 1,320 mm)	103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
Weight		448 lb. (203 kg)	417 lb. (189 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software (VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment(Use in an operating environment within this range.)

Humidity vs Temperature
