Ultra High Pressure Pumps | M Series - 70M

Supplier: WOMA Australia

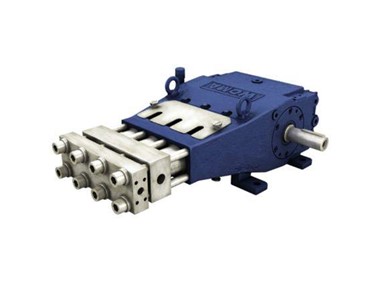

The type 70M high-pressure pump provides a max. operating pressure of 3,000 bar and a max. flow rate of 9.8 l/min.

Receive 1-3 days from order

The high-pressure plunger pumps of the M-series provide working pressures of up to 3,000 bar. This makes the pumps of the M-series ideal for work such as cutting, fragmenting, stripping and de-rusting.

Built in central valve design, these plunger pumps have high volumetric efficiencies even at high pressures. The hard metal plungers used are extremely stable and ensure a long service life and therefore low maintenance costs. Furthermore, they are insensitive to temperature shocks. The guide of the plunger as well as the sealing water system ensures a long service life of the sealing system and counteracts the intrusion of air.

On request, the availability of an ATEX version can be checked.

Technical data

Weight approx. 117 kg

Inlet pressure connection IG ¾“

Pressure connection with flange 9/16“ UNF - LH

Cooling water connection IG ¾“

Crankshaft max. 825 1/min

min. Depends on operation parameters

Diameter 40mm k6

Drive shaft feather key DIN 6885 Sheet 1, A12 x 8 x 70

Torque at drive shaft max. 572 Nm

Moment of inertia J 0.020 kgm²

Centrifugal moment GD² 0.78 Nm²

Inlet pressure min. 1.5 bar max. 5.0 bar

Pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C max. +30 °C (higher temperatures on request)

Flow inlet requirement min. 2x nominal feed rate of the pump, depending on the interchangeable conversion set (1.75x nominal feed rate of the pump, depending on the interchangeable conversion set, if no internal gearbox cooling is installed)

Emission sound pressure level >80 dB(A) according to DIN EN ISO 11200

Oil capacity of transmission end approx. 3.2 l

Oil viscosity ISO VG under DIN 51517-2 or -3 320 mm²/s

Oil temperature max. 80 °C Set value 60-70 °C

Heat exchanger cooling water requirement 1-2 l/min approx.

Heat exchanger cooling water temperature min. +5 °C max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar max. 10 bar
