High Pressure Pumps | 3 Series - 190-3

Supplier: WOMA Australia

High Pressure Pumps | 3 Series - 190-3

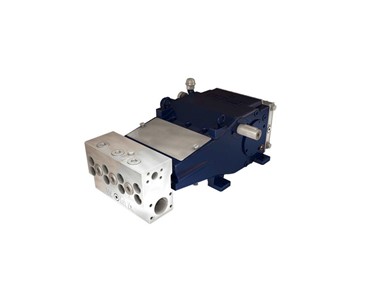

The type 1903 high-pressure pump provides a maximum operating pressure of 250 bar and a maximum flow rate of 279 l/min.

Receive 1-3 days from order

Operating pressures up to 250 bar and nominal flow rates of up to 403 l/min make the high-pressure pumps of the 03-series specialists for descaling as well as for sewer and pipe cleaning.

In addition to the corrosion-resistant stainless steel variant, WOMA offers a cost-effective variant with gray cast iron.

The sealing system of this plunger pump is particularly service-friendly due to fewer wearing parts and easy maintenance. The ceramic plungers used are extremely resistant to acidic and basic fluids. Alternatively, the pump is available with coated steel plungers that offer increased wear resistance and resistance to thermal shocks. These features, together with the favorable price-performance ratio, make the pumps of the 03-series a good choice.

Technical data

Weight approx. 352 kg (GGG pump head) / 380 kg (NIRO pump head)

Inlet pressure connection GGG pump head IG 3“ / NIRO pump head SAE 3“, 3,000 psi, hole pattern M16; 106.4 x 61.9

Pressure connection GGG pump head IG 1 ¼“ / NIRO pump head SAE 1 ¼“, 6,000 psi, hole pattern M14; 66.7 x 31.8

Cooling water connection IG 1“

Crankshaft max. 424 1/min, min. depends on operation parameters

Drive shaft diameter 50 mm k6, feather key DIN 6885 Sheet 1, A14 x 9 x 72

Torque at drive shaft max. 687 Nm

Moment of inertia J 0.0294 kgm²

Centrifugal moment GD² 1.152 Nm²

Inlet pressure min. 2.0 bar, max. 5.0 bar

Pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C, max. +45 °C (higher temperatures on request)

Flow inlet requirement min. 1.5x nominal feed rate of the pump, dependent on the conversion set

Emission sound pressure level >80 dB(A), according to DIN EN ISO 11200

Oil capacity of transmission end approx. 8 l

Oil viscosity ISO VG under DIN 51517-2 or -3, 320 mm²/s

Oil pressure lubrication 2.5–5.0 bar

Oil pressure set value overflow valve 5.0 bar

Oil filter fineness 0.025 mm

Oil temperature max. 80 °C, set value 60–70 °C

Heat exchanger cooling water requirement approx. 5–10 l/min

Heat exchanger cooling water temperature min. +5 °C, max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar, max. 10 bar
