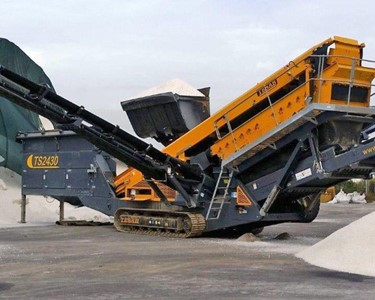

TS2430 Mobile Screener Get latest price

With its superior design and 14’ x 5’ (4.2m x 1.52m) screenbox, this machine can easily produce comparable capacities to some of its larger competitors – excelling in a wide range of applications, especially fine sand screening.

With an excellently designed hydraulic screenbox linkage system and mesh wedge system, maintenance and mesh changing times are reduced saving you money by reducing downtime.

So, if you want more capacity from your screener but don’t need a large machine then the TS2430 is a perfect match. You’ll be surprised by the return you’ll get from this machine.

SPECIFICATIONS

• Max Feed Time: 500 T/H*
• Engine Size: CAT 100Hp (75Kw)
• Top Deck: 4.27m x 1.52m (14′ x 5′)
• Bottom Deck: 3.66m x 1.52m (12′ x 5′)
• Transport Dimensions:
  • Height  3400mm (11′ 2″)
  • Width  2900mm (9’6″)
  • Length  16,520mm (54’2″)
• Working Dimensions:
  • Width  15,840mm (52″)
  • Length  17,320mm (56’10”)
  • Weight (Est)  27,200kgs (59,965Ibs)

To contact EEA Materials Processing about TS2430 Mobile Screener use Get a quote.
