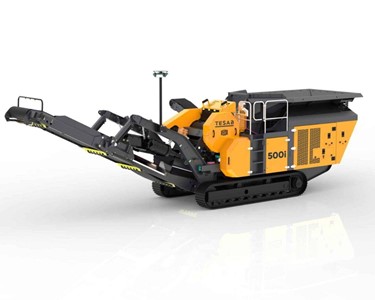

Jaw Crusher | 500i

The Tesab 500i compact jaw crusher is the perfect solution for projects with small footprints but big requirements.

Receive 1-3 days from order

The Tesab 500i compact jaw crusher is the perfect solution for projects with small footprints but big requirements. These compact, mobile crushers are suited particularly to construction and demolition recycling, asphalt recycling, and aggregates.

This versatile, mobile crusher moves nimbly around in small spaces, and continues moving while crushing. The 500i’s small footprint is uniquely suited to the demolition and asphalt recycling, aggregates and smaller scale construction projects. Less than 2.5m wide, the crushers can be transported easily from site to site.

The new line boasts flexibility as well Not only can the 500i continue crushing while moving, it can convert to a recirculating jaw crusher in under one hour.

SPECIFICATIONS

Engine: 218 Hp (162 kW)
Weight – w/ magnet & dirt conveyor: 52,580 lbs (23,850kg)
Crushing Chamber:35″ (wide) x 20″ (pitman opening)
Transport Dimensions:
Height 2.98m (9′ 9″)
Width 2.49m (8′ 2″)
Length 9.32m (30′ 7″)
Conveyor Stockpile Height:
Main 3.0m (9′ 10″)
Side 2.5m (8′ 6″)
Fines 3.02m (9′ 11″)

To contact EEA Materials Processing about Tesab Jaw Crusher | 500i use Get a quote.
