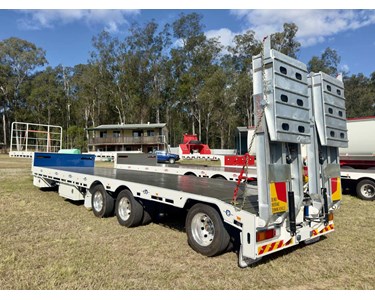

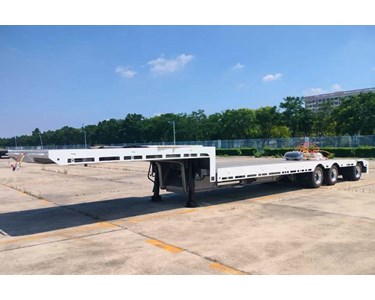

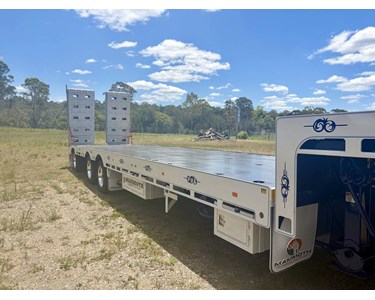

The Split Tri Deck Widener is a heavy-duty tri-axle drop deck widener trailer, designed to carry larger and wider loads efficiently, helping operators maximise payload and minimise operational costs.

Maximises payload and reduces haulage costs with a widening deck and higher capacity.

An advanced alternative to the traditional tri-axle drop deck widener, this trailer offers a widening range from 2.5m to 4m, enabling higher payload capacity and fewer trips for heavy-load transport. Designed to boost efficiency, productivity, and cost savings, it is suited for demanding jobs where load flexibility and durability are paramount.

Main Benefits

Versatile widening from 2.5m to 4m for improved load flexibility and efficiency.
Split tri-axle design for higher payloads and reduced number of trips.
Robust construction for reliable performance in tough conditions.
Economical operation with reduced fuel, labour, and maintenance costs.

Technical Specifications

Width	2.5m to 4m
Deck Length	10.4m bottom deck, 4.2m top deck
ATM (Aggregate Trailer Mass)	51t (upgradable to 54t)
GTM (Gross Trailer Mass)	27t (Airbag suspension)
Tare Weight	13.5t
Construction	BS700 grade steel chassis 12mm plasma cut flat coaming rail 5mm BS700 grade steel flooring
Axles	KHitch axles, steerable rear axle with activated locking (other options available)
Suspension	KHitch/Weweler airbag suspension
Braking	Air Brake Corporation braking system
Tyres	19.5” tyres with 10-stud alloy rims (includes 1 spare)
Hydraulics	Hydraulic network cylinders with 12V power pack, remote & fixed control panel (other options available)
Lighting	Hella LED lighting

Standard Features

Galvanised bi-fold ramps with pull-out top deck
Bolt-on 10mm skid plate with 50mm bolt-on king pin
Data Track Pro hubometer
30 deck tie-down points, gate pockets
2-speed landing legs
Flashing light and fitted oversize signs
Sand blasted and painted in 2Pac paint (colours optional) with scrolls
Chrome centre hubs and nut covers
4 lockable steel toolboxes (2 large, 2 small)
Aluminium water tank
Removable flag holders
Tyre carrier cut through main rail and side steps cut in
3-way twist lock and chassis mounted pedestals
12-month warranty

To contact Mammoth Transport about Split Tri Drop Deck Widener use Get a quote.
