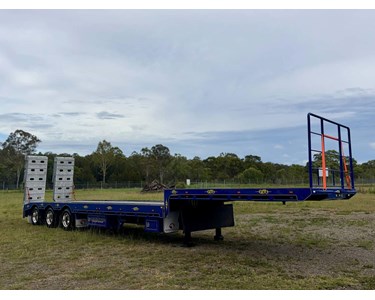

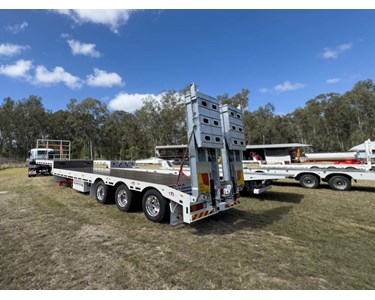

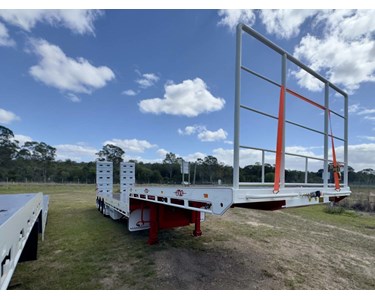

The Drop Deck Widener is a versatile heavy haulage trailer designed to handle wide or irregular loads with ease, thanks to its widening capability from 2.5m to 4m.

Trailer widens from 2.5m to 4m for maximum load versatility.

This trailer is engineered for transporting wide loads, offering both high load capacity and ease of use. Its Australian-built durability ensures long-lasting performance across demanding applications.

Main Features

Widening capability from 2.5m up to 4m for enhanced load flexibility and stability.
47-tonne ATM suitable for heavy machinery and equipment haulage.
Bi-fold galvanised ramps with pull out top deck for straightforward loading and unloading.
Constructed with BS700 grade steel, offering superior strength and longevity.
Available with KHitch/Weweler airbag suspension as standard; mechanical (spring) suspension available as a custom order.
Fitted with 19.5 tyres on 10 stud alloy rims (1 x spare included).
Hydraulic Network cylinders powered by 12V power pack (remote & fixed control panel; alternative options available).
Sandblasted and finished in durable 2Pac paint, with optional colours and stylised scrolls.
Integrated Data Track Pro Hubometer, 26 deck tie downs, gate pockets & more.
Standard safety and convenience features: flashing light, oversize signs, water tank, side steps, removable flag holders & more.

Technical Specifications

Width	2.5m to 4m
Deck Length	9.5m bottom deck, 4m top deck
ATM (Aggregate Trailer Mass)	47 tonnes
Tare	12.5 tonnes
Suspension	KHitch/Weweler Airbag (mechanical spring optional)
Axles	KHitch

Standard Inclusions

Flat Coaming Rail: 12mm BS700 grade plasma cut
Flooring: 5mm BS700 grade steel
Air Brake Corporation Braking System
Raise/lower valve and 2-speed landing legs
4 lockable steel toolboxes (2 large, 2 small)
Aluminium water tank
Tyre carrier cut through main rail
3-way twist lock and chassis-mounted pedestals
Road Train Lead (excluding ringfeder)
Painted with 2Pac paint and chrome centre hubs and nut covers

To contact Mammoth Transport about Drop Deck Widener | Widening up to 4m use Get a quote.
