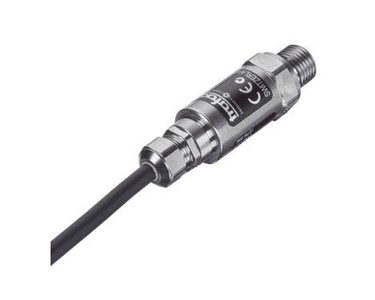

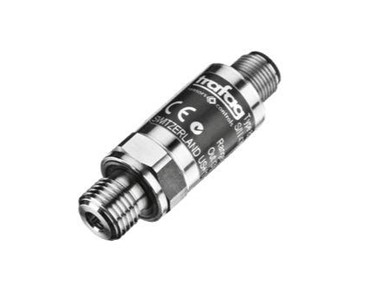

Pressure Transmitter 40°C - +85°C | NAR 8258

Supplier: Cebeco

The pressure transmitter NAR 8258, with an increased accuracy of 0.3 %, was specifically designed for railway vehicles (EN 50155) and has a long-term stable thin-film-on-steel sensor cell.

Receive 1-3 days from order

The wide temperature range from -40°C to +85°C and the triple overpressure protection make the NAR 8258 the ideal choice for railway vehicles in rough environmental conditions.

At Cebeco, we provide a wide range of solutions, including differential pressure transmitters, hydrostatic level transmitters, pressure transmitters, gas detectors, and more, in addition to the NAR 8258.

Technical Data

Product Code 8258
Name NAR
Designation Railway Pressure Transmitter
Brand Trafag
Measuring range ≤ 100 bar, ≤ 600 bar, <1500 psi, < 7500 psi, Relative pressure, ≤ 10000 psi
Product category Pressure Transmitters
Accuracy @ 25? typ. 0.3 % FS
Output signal 4 to 20 mA, 1 PNP Switch, 2 PNP Switch
Special features Compact design
Measuring principle Thin-film-on-steel
Industry Railways
Applications Railways
Approval / conformity EN 50155 (Railway) EN 45545-2 (Fire protection) EN 61373 (Shock, vibration) EN 50121-3-2 (EMC)
Electrical connections Industrial standard, contact distance 9.4 mm; M12x1; Cable IP67, IP68
Pressure connections G1/4" m; G1/4" m with integrated damping; G1/4" m (Manometer); 1/4"NPT m; 7/16"-20UNF m, SAE4 (J1926); R1/4" m, DIN2999; M10x1 m, DIN EN ISO 6149-2; M12x1 m, DIN EN ISO 6149-2; M12x1.25 m, DIN EN ISO 6149-2; M12x1.5 m, DIN EN ISO 9974-2
Media temperature –40°C ... +85°C
Ambient temperature –40°C ... +85°C (EN 50155: OT6)

To contact Cebeco about Pressure Transmitter 40°C - +85°C | NAR 8258 use Get a quote.

The wide temperature range from -40°C to +85°C and the triple overpressure protection make the NAR 8258 the ideal choice for railway vehicles in rough environmental conditions.

Technical Data

Product Code 8258
Name NAR
Designation Railway Pressure Transmitter
Brand Trafag
Measuring range ≤ 100 bar, ≤ 600 bar, <1500 psi, < 7500 psi, Relative pressure, ≤ 10000 psi
Product category Pressure Transmitters
Accuracy @ 25? typ. 0.3 % FS
Output signal 4 to 20 mA, 1 PNP Switch, 2 PNP Switch
Special features Compact design
Measuring principle Thin-film-on-steel
Industry Railways
Applications Railways
Approval / conformity EN 50155 (Railway) EN 45545-2 (Fire protection) EN 61373 (Shock, vibration) EN 50121-3-2 (EMC)
Electrical connections Industrial standard, contact distance 9.4 mm; M12x1; Cable IP67, IP68
Pressure connections G1/4" m; G1/4" m with integrated damping; G1/4" m (Manometer); 1/4"NPT m; 7/16"-20UNF m, SAE4 (J1926); R1/4" m, DIN2999; M10x1 m, DIN EN ISO 6149-2; M12x1 m, DIN EN ISO 6149-2; M12x1.25 m, DIN EN ISO 6149-2; M12x1.5 m, DIN EN ISO 9974-2
Media temperature –40°C ... +85°C
Ambient temperature –40°C ... +85°C (EN 50155: OT6)

Read less...

To contact Cebeco about Pressure Transmitter 40°C - +85°C | NAR 8258 use Get a quote.

H73303u_Instructions_8250_8252_8254_8256_8258_NHT_NAT_NAH_NAE_NAR_Pressure_Transmitter(0.58MB)

H72307m_EN_8258_NAR_Railways_Pressure_Transmitter(0.82MB)
