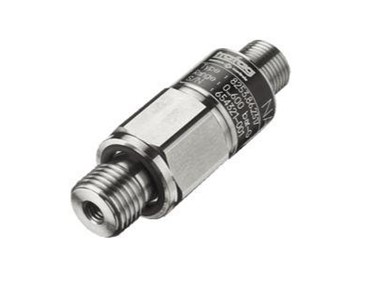

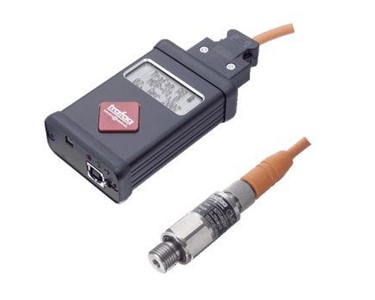

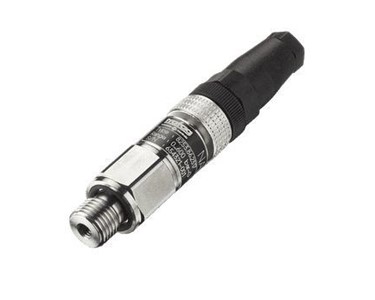

Pressure Transmitter -40°C - +125°C | NAH 8253 Get latest price

Read more...

To contact Cebeco about Pressure Transmitter -40°C - +125°C | NAH 8253 use Get a quote.

Main Features

• Smallest design
• Accuracy classes 0.1 %, 0.15 %, 0.3 %
• Excellent temperature resistance
• Relative and absolute pressure measurement

Technical Data

• Product Code 8253
• Name NAH
• Designation Pressure Transmitter
• Brand Trafag
• Measuring range ≥ 2.5 bar, ≥ 30 psi, ≤ 7500 psi, ≤ 100 bar, ≤ 600 bar, <1500 psi, < 7500 psi, Relative pressure, Absolute pressure
• Product category Pressure Transmitters
• Accuracy @ 25? typ. 0.1 % FS, 0.3 % FS, 0.15 % FS
• Output signal 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC, 1 to 6 VDC, 0.5 to 4.5 VDC ratiometric
• Special features Compact design
• Measuring principle Thin-film-on-steel
• Industry Hydraulics, Machine tools, Railways, Process Technology, Test Benches, Test and measurement
• Applications Hydraulics, Machine tools, Process technology, Railways, Test benches,
• Electrical connections Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Cable IP67
• Pressure connections G1/4" m; 1/4"NPT m; 1/4"NPT f; 7/16"-20UNF m; 7/16"-20UNF f, DIN3866, valve opener; 7/16"-20UNF m, SAE4 (J1926); 9/16"-18UNF m, SAE6 (J1926); 3/8"-24UNF m, SAE3 (J514); R1/4" m, DIN2999; M14x1.5 m, DIN EN ISO 6149-2
• Media temperature -40°C ... +125°C
• Ambient temperature -40°C ... +125°C
