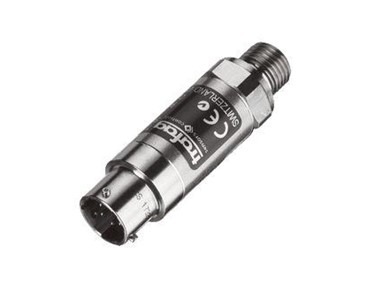

Engine Pressure Transmitter -40°C - 125°C | NAE 8255 Get latest price

Read more...

To contact Cebeco about Engine Pressure Transmitter -40°C - 125°C | NAE 8255 use Get a quote.

Main Features

• Smallest design
• Different accuracy classes
• Excellent temperature resistance
• Improved vibration resistance

Technical Data

• Product Code 8255
• Name NAE
• Designation Engine Pressure Transmitter
• Brand Trafag
• Measuring range ≥ 2.5 bar, ≤ 600 bar
• Product category Pressure Transmitters
• Accuracy @ 25? typ. 0.3 % FS, 0.15 % FS
• Output signal 4 to 20 mA, 0.5 to 4.5 VDC ratiometric, 0 to 10 VDC
• Measuring principle Thin-film-on-steel
• Industry Engine manufacturing, Shipbuilding, Test Benches
• Applications Engine manufacturing, Shipbuilding , Test benches
• Approval / conformity DNV-GL, RINA
• Electrical connections Industrial standard, contact distance 9.4 mm; M12x1
• Pressure connections G1/4" m, 7/16"-20UNF m, 1/4"NPT m
• Media temperature -40°C ... 125°C
• Ambient temperature -40°C ... 125°C
