McCloskey Cone Crusher | C2

McCloskey - Cone Crusher | C2

Supplier: MSC Group

Cone Crusher | C2

Our C2 cone crusher distinguishes itself as an entry level cone with full level features, such as: An anti spin system, load and material level monitoring, fully hydraulic push button CSS adjust and full hydraulic relief system.

Receive 1-3 days from order

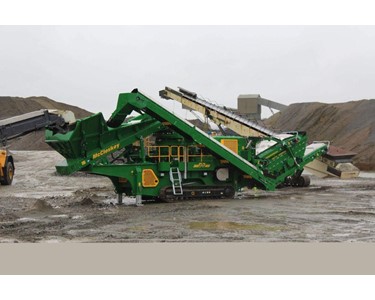

The McCloskey™ C2 Cone Crusher is the ideal portable secondary crushing solution for the operator requiring performance rates up to 300TPH. It is designed for optimum versatility in crushing spreads, with easy conversion from the finest to the coarsest cavity, adjustable speed to produce a higher percentage of on-spec product, and fewer crushing stages, lowering cost and saving energy.

Both the C2 & C2R have full-level features such as load and material level monitoring, full hydraulic push button Closed Side Setting (CSS) adjust and a full hydraulic relief system.

High Performance Cone Crusher

MC200 Cone
Tracked
Integrated hopper with folding rear door
I-beam plate fabricated chassis construction
Large gap between crusher discharge and main conveyor
Fast setup time
Open chassis design for ease of maintenance
High speed, high throw 200Hp cone

SPECIFICATION

Engine: 360 Hp (268 kW)
Cone: MC200
Feed Opening: 38” (914mm)
Feeder Belt Width: 42” (1050mm)
Hopper Volume: 5m3 (6.5yd3)
Crusher Drive: Direct Drive
CSS Adjustment: Hydraulic
Transport Height: 11’ - 1.8” (3.4m)
Transport Length: 54’ - 4.7” (16.6m)
Transport Width: 9’ - 1.4” (2.8m)
Weight: 103,617 lb (47,000kg) (est.)
Stockpile Height Main Conveyor: 14’ - 0.5” (4281mm)
Main Conveyor Belt Width: 48” (1200mm)
