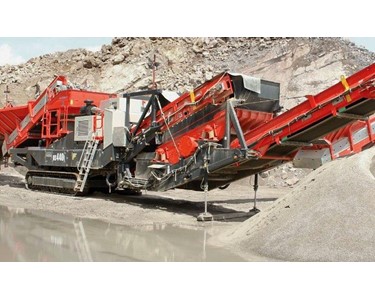

Cone Crusher | Sandvik US440I
The Sandvik US440i cone crusher is a heavy-duty cone crusher built using the latest technology which has proven capable of operating in the toughest climatic conditions. Featuring the market-leading Sandvik CS440 cone crushing chamber it comes with a choice of mantles and settings which make it suitable for a wide range of applications worldwide. Trouble-free and optimal production is ensured by on-board high-level Intelligence together with ASRi which comes as standard.
Key Benefits Include:
Material level in the crusher is optimized at all times by an inbuilt monitoring system. This adjusts the feed conveyor speed and feed from the primary unit.
Feed conveyor is hydraulically manoeuvred to and from its working position. The input area of the feed conveyor has a 6m3 (212 cubic feet) large rubber lined (with Sandvik modular wear protection) feed hopper and is designed for feeding directly from a front loader, or from a primary crusher. The conveyor belt is protected by a steel structure in the hopper, which is enhanced by impact bars that absorb the shock from loading and extends belt life.
Wireless communication with Sandvik UJ440i primary unit in combination with optional sonar at the unit’s discharge conveyor.
Metal detector located before crusher.
It is possible to position the material drop point from the feed conveyor into the crusher via (radio) remote.
Water spray units are situated at the discharge conveyor and over the crusher.
Unit is fitted with an engine and crusher lubrication oil pre-heater as standard.
Platforms are located around the crusher and power pack in order to provide easy access for service and maintenance.
Radio remote control fitted as standard.
Sensors are located at strategic locations to ensure a trouble-free operation and safeguard against costly breakdowns.
The US440i is easily transported in one piece, with all components remaining on board.
No oil spillage during filter changes due to vacuumized hydraulic system and dust suppression systems.
Features My Fleet telematics remote monitoring system as standard.
