Wipotec Weighing Kit range up to 7,500 g ...

Wipotec - Weighing Kit range up to 7,500 g | EC-ES-FS - VA35WA

Weighing Kit range up to 7,500 g | EC-ES-FS - VA35WA

EC-ES-FS - VA35WA Conveyor (IP69K)

Receive 1-3 days from order

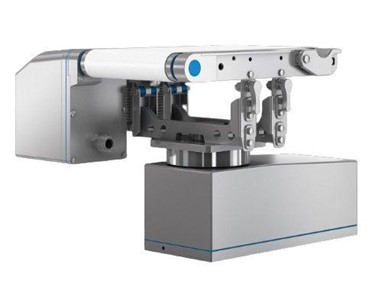

Weighing kits, consisting of an EC-ES-FS Weigh Cell and VA35WA conveyor, are developed for applications where hygiene and cleanability are essential. The GMP-compliant design has hygienic gaskets at all sealing points and meets protection class IP69K. The conveyor construction is designed in such a way that only the belt is removed without tools for cleaning. All other parts of the belt body remain captive on the weighing kit.

The EC-ES-FS Weigh Cell can be used for a huge variety of weighing and dead load ranges. In addition, the available conveyor widths and lenghts cover the common application specific standard. The 35 mm roller diameter of the conveyor can optionally be equipped with a knife-edge with 17 mm roller diameter which enables a smooth transition of products with smaller dimensions. All weighing-relevant components are produced in-house and are subject to the highest quality requirements in order to design the weighing kit for the intended purpose and to achieve the best possible weighing result.

Performance

Max. weighing range (g) 7,500
Display value (g) 0.05
Max. dead load range (g) 15,000
IP (protection class) 69K

To be used in

Wash Down applications
Checkweighers (for hygiene applications such as unpackaged foods)
Custom machine engineering

Features

Application specific weighing ranges
Large choice of weighing ranges
Protection class IP69K
Stainless steel Weigh Cell and conveyor construction
35 mm roller diameter for optimum product handling
Optional knife edge with 17 mm roller diameter
Tool-free belt change
Application specific conveyor dimensions
Stepless, maintenance-free servomotor, optimized for high-precision weighing applications
Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)

To contact WIPOTEC Australia about Wipotec Weighing Kit range up to 7,500 g | EC-ES-FS - VA35WA use Get a quote.

Performance

Max. weighing range (g) 7,500
Display value (g) 0.05
Max. dead load range (g) 15,000
IP (protection class) 69K

To be used in

Wash Down applications
Checkweighers (for hygiene applications such as unpackaged foods)
Custom machine engineering

Features

Application specific weighing ranges
Large choice of weighing ranges
Protection class IP69K
Stainless steel Weigh Cell and conveyor construction
35 mm roller diameter for optimum product handling
Optional knife edge with 17 mm roller diameter
Tool-free belt change
Application specific conveyor dimensions
Stepless, maintenance-free servomotor, optimized for high-precision weighing applications
Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)
