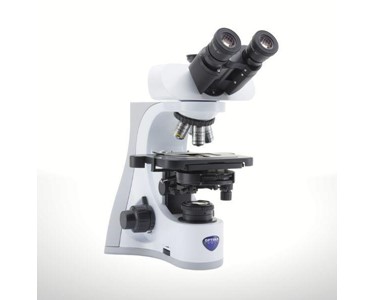

OPTIKA - Trinocular Upright Microscope | B-510PH Get latest price

Observation mode: Brightfield, phase contrast and darkfield (dry).
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:
– IOS W-PLAN PH 10x/0.25
– IOS W-PLAN PH 20x/0.40
– IOS W-PLAN PH 40x/0.65
– IOS W-PLAN PH 100x/1.25 (Oil)

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
Transmitted illumination (Full Koehler type):  X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

To contact NWI Group about OPTIKA Trinocular Upright Microscope | B-510PH use Get a quote.

Observation mode: Brightfield, phase contrast and darkfield (dry).
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:
– IOS W-PLAN PH 10x/0.25
– IOS W-PLAN PH 20x/0.40
– IOS W-PLAN PH 40x/0.65
– IOS W-PLAN PH 100x/1.25 (Oil)

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
Transmitted illumination (Full Koehler type):  X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
