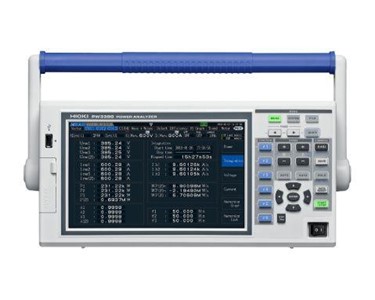

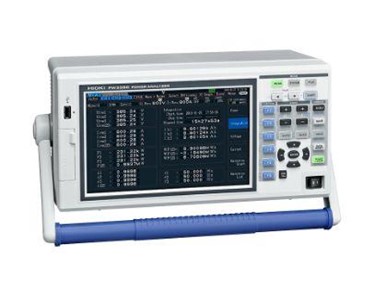

Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3390 is a high-precision, broad-range power analyzer for measuring electrical power from DC to inverter frequencies, providing four input channels to support single- and three-phase inverter motor systems up to 4000 A AC/DC with superior accuracy.

High-accuracy, high-speed calculation of transient-state power in 50 ms; harmonic analysis; display of instantaneous waveforms; noise analysis; and simultaneous parallel calculation of all parameters, including efficiency loss

Delivering High Accuracy and Mobility in One Single Device

• The Hioki PW3390 Power Analyzer offers ±0.04% ±0.05% f.s. power accuracy, the top of its class. With a 200kHz measurement bandwidth and flat amplitude and phase characteristics up to high frequencies, as well as a powerful phase shift correction function that maximizes the power of its original current sensors, the PW3390 can now be utilized by researchers and developers to high frequency, low power factor power with absolutely accuracy. Apply the PW3390 and Hioki current sensors to power conversion efficiency evaluations and the analysis and harmonic studies of EV and HEV inverter motors.

Key Features

• ±0.04% basic power accuracy, among the best in its class
• 200 kHz measurement band with flat amplitude and phase accuracy that extend to high frequencies
• Remarkably small and light footprint, enabling high-accuracy measurement to be easily carried out even in the field
• Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products)
• Simultaneous measurement of multiple circuits and ability to acquire synchronized data using up to 8 devices (for 32 channels)
• Simple power measurement using clamp-on current sensors
• Measurement of current and power inputs and outputs as part of the new WLTP fuel efficiency international standard
• Earning Japan Calibration Service System (JCSS) Certification for DC Power Measurement. (*1)

Model No. (Order Code)

• PW3390-01
• PW3390-02 D/A output
• PW3390-03 D/A output, motor analysis

Note: PW3390 by itself does not support current and power measurements. Optional current sensor and voltage cord are necessary to measure current or power parameters. Specify inclusion of Motor analysis & D/A output upon order for factory installation. These options cannot be changed or added after delivery.
