GWEIKE Coil Fed CNC Fiber Laser Cutting ...

GWEIKE - Coil Fed CNC Fiber Laser Cutting Line for Steel Coil | LF3015MB

Supplier: Koenig Machinery

Coil Fed CNC Fiber Laser Cutting Line for Steel Coil | LF3015MB

Automated coil-fed CNC fiber laser cutting line for steel coil and sheet metal coil processing. Designed for high-volume production with continuous feeding, reduced handling and faster throughput.

Video for GWEIKE Coil Fed CNC Fiber Laser Cutting Line for Steel Coil | LF3015MB

Continuous Coil Fed Laser Cutting

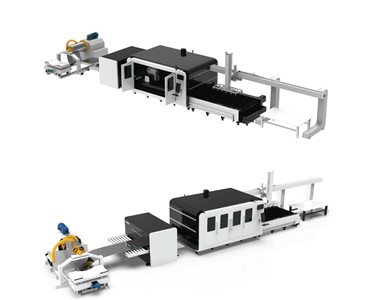

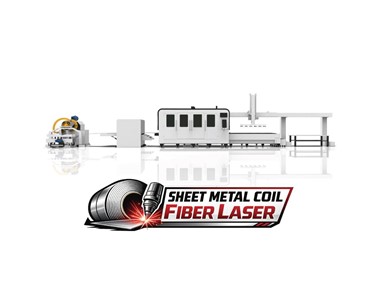

GWEIKE LF3015MB Coil-Fed CNC Fiber Laser Cutting Line

The LF3015MB is a fully automated coil-fed fiber laser cutting system designed for high-volume sheet metal production.

Unlike traditional flatbed laser cutters that require manual sheet loading, this system processes steel coil, sheet metal coil and coil stock directly from a decoiler/uncoiler into the laser cutting stage — enabling continuous, automated production.

This is a true laser cutting line for manufacturers scaling output.

Also Known As

This system may be referred to as:

• Coil-fed laser cutter
• Steel coil cutting line
• Sheet metal coil processing line
• Decoiler laser system
• Uncoiler laser cutting line
• Continuous sheet laser cutter

Designed For

• Electrical enclosure production lines
• Automotive component manufacturers
• Appliance manufacturers
• Industrial sheet metal processors
• Contract manufacturing facilities
• High-volume fabrication environments

If you're processing large volumes of coil stock daily, automation is essential.

What Makes It Different

• Integrated uncoiler (decoiler) system
• Automatic levelling before laser cutting
• Continuous feeding from coil stock
• Reduced manual handling
• Improved material utilisation
• Faster production throughput

Production Benefits

• Continuous cutting from rolled steel coil
• Lower labour requirements
• Reduced downtime between sheets
• Improved workflow automation
• Consistent feeding accuracy
• Ideal for repetitive, high-volume parts

Why Choose a Coil-Fed Laser Line?

Traditional flatbed lasers require manual sheet loading and unloading.

The LF3015MB:

• Automates material supply from master coil
• Increases daily output capacity
• Minimises scrap and sheet waste
• Improves production consistency
• Reduces operator fatigue

For serious manufacturers, this isn’t just a laser cutter — it’s a production system.

Technical Parameters	Specification
Laser Power	1.5kW / 2kW / 3kW / 6kW
Coil width	1000-1300mm
Machine Size	LF3015MB = 23500 x 5500 x 2650(H)mm LF4015MB = 24500 x 5500 x 2650(H)mm LF6015MB = 26500 x 5500 x 2650(H)mm
Approximate working area	LF3015MB = 25 x 6.5 x 2.7m LF4015MB = 26 x 6.5 x 2.7m LF6015MB = 28 x 6.5 x 2.7m
Side door access	3000mm
Laser source type	MAX, Raycus or IPG
Laser Head Type	Automatic focussing laser head 1.6-2kW = Raytools BM111 3kW = BOCI BLT421 3kW = BOCI BLT441
Cooling Type	Industrial Water Cooling – S&A water chiller
Moving Speed	120m/min
Acceleration	1.5G
Laser Output Control	0-100% set by software
Drive method	YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive
Positioning Accuracy	0.02 mm
Re-positioning accuracy	0.02mm
Minimum line width	0.1mm
Controlling Software	Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection
Graphic Format Supported	Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc.
Compatible Software	Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc.
Colour Separation	Yes (imports colours to control cutting layers)
Auxiliary Equipment	Exhaust Fan, Industrial water-cooling unit
Power Supply	Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 80amp
Gas Regulation	Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting)
Gas connection	O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS
Working Environment	Temperature:0-45C, Humidity 5-95% (No Condensate Water)

GWEIKE LF3015MB Coil-Fed CNC Fiber Laser Cutting Line

The LF3015MB is a fully automated coil-fed fiber laser cutting system designed for high-volume sheet metal production.

This is a true laser cutting line for manufacturers scaling output.

Also Known As

This system may be referred to as:

• Coil-fed laser cutter
• Steel coil cutting line
• Sheet metal coil processing line
• Decoiler laser system
• Uncoiler laser cutting line
• Continuous sheet laser cutter

Designed For

If you're processing large volumes of coil stock daily, automation is essential.

What Makes It Different

Production Benefits

Why Choose a Coil-Fed Laser Line?

Traditional flatbed lasers require manual sheet loading and unloading.

The LF3015MB:

• Automates material supply from master coil
• Increases daily output capacity
• Minimises scrap and sheet waste
• Improves production consistency
• Reduces operator fatigue

For serious manufacturers, this isn’t just a laser cutter — it’s a production system.

Technical Parameters	Specification
Laser Power	1.5kW / 2kW / 3kW / 6kW
Coil width	1000-1300mm
Machine Size	LF3015MB = 23500 x 5500 x 2650(H)mm LF4015MB = 24500 x 5500 x 2650(H)mm LF6015MB = 26500 x 5500 x 2650(H)mm
Approximate working area	LF3015MB = 25 x 6.5 x 2.7m LF4015MB = 26 x 6.5 x 2.7m LF6015MB = 28 x 6.5 x 2.7m
Side door access	3000mm
Laser source type	MAX, Raycus or IPG
Laser Head Type	Automatic focussing laser head 1.6-2kW = Raytools BM111 3kW = BOCI BLT421 3kW = BOCI BLT441
Cooling Type	Industrial Water Cooling – S&A water chiller
Moving Speed	120m/min
Acceleration	1.5G
Laser Output Control	0-100% set by software
Drive method	YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive
Positioning Accuracy	0.02 mm
Re-positioning accuracy	0.02mm
Minimum line width	0.1mm
Controlling Software	Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection
Graphic Format Supported	Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc.
Compatible Software	Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc.
Colour Separation	Yes (imports colours to control cutting layers)
Auxiliary Equipment	Exhaust Fan, Industrial water-cooling unit
Power Supply	Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 80amp
Gas Regulation	Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting)
Gas connection	O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS
Working Environment	Temperature:0-45C, Humidity 5-95% (No Condensate Water)
