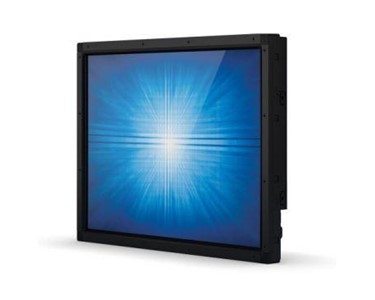

Open Frame Secure Touch Screen Monitor | 1590L

Experience seamless interactivity with the Elo 1590L 15" Open Frame Touchscreen Monitor, expertly engineered for commercial-grade environments such as retail self-service, kiosks, gaming, and industrial automation.

Receive 1-3 days from order

This compact yet robust display features a sleek, slim design, enabled by a power-efficient LED backlight that reduces energy consumption and heat output.

The SecureTouch technology delivers stable, drift-free performance with accurate touch responses and vivid image clarity, making it ideal for applications that demand reliable 24/7 interaction. With versatile mounting options and broad connectivity—including HDMI, VGA, and DisplayPort—the Elo 1590L integrates effortlessly into a variety of custom enclosures and industrial setups. Built to last and backed by a 3-year warranty, it ensures long-term performance in any installation.

Product Features

15-inch open-frame LCD touchscreen with 4:3 aspect ratio
SecureTouch surface wave touch technology for accurate and responsive interaction
Energy-saving LED backlight reduces power usage and heat generation
Multiple video inputs: HDMI, VGA, and DisplayPort
Dual touch interfaces: USB and RS232 for flexible system integration
Anti-glare display enhances visibility in various lighting conditions
Wide viewing angles: 160° horizontal and 140° vertical
Robust mounting support: VESA, rear, front, rack, and flush options
Compact, slim-bezel design ideal for kiosks and embedded applications
3-year manufacturer’s warranty with 50,000-hour MTBF

Product Specifications

Specification	Details
Model	1590L
Screen Size	15" diagonal
Aspect Ratio	4:03
Native Resolution	1024 x 768 at 60, 75 Hz
Supported Resolutions	640×480, 720×400, 800×500, 800×600
Display Type	LCD with LED backlight
Brightness (Typical)	250 nits (panel), 220 nits (SecureTouch)
Response Time	16 ms
Touch Technology	SecureTouch (Surface Acoustic Wave)
Touch Points	Single-touch and 10-touch (model dependent)
Viewing Angle	Horizontal: 80°/160°, Vertical: 70°/140°
Contrast Ratio	700:01:00
Input Ports	HDMI 1.3, VGA (DB-15), DisplayPort 1.1a
Touch Interface	USB & RS232
Mounting Options	VESA 75mm & 100mm, front/rear/flush/rack mount (with optional kits)
Power Input	12V DC (via optional power brick)
Power Consumption	On: 12.5W, Sleep: 1.5W, Off: 0.5W
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity (Operating)	20% to 80>#/span###
Humidity (Storage)	10% to 95>#/span###
Dimensions (Bezel)	336.4mm x 264.4mm x 41.9mm
Dimensions (Zero-Bezel)	358mm x 284.9mm x 35.6mm
Weight (Unpackaged)	2.9 kg
Weight (Packaged)	4.7 kg
MTBF	50,000 hours demonstrated
Certifications	UL, FCC, RCM, CE, TUV, RoHS, WEEE, and more
Included Accessories	HDMI & VGA cables, USB cable, OSD remote, Quick Start Guide, Mounting Kits
Warranty	3 years standard

To contact POS Central about Elo Open Frame Secure Touch Screen Monitor | 1590L use Get a quote.

This compact yet robust display features a sleek, slim design, enabled by a power-efficient LED backlight that reduces energy consumption and heat output.

Product Features

15-inch open-frame LCD touchscreen with 4:3 aspect ratio
SecureTouch surface wave touch technology for accurate and responsive interaction
Energy-saving LED backlight reduces power usage and heat generation
Multiple video inputs: HDMI, VGA, and DisplayPort
Dual touch interfaces: USB and RS232 for flexible system integration
Anti-glare display enhances visibility in various lighting conditions
Wide viewing angles: 160° horizontal and 140° vertical
Robust mounting support: VESA, rear, front, rack, and flush options
Compact, slim-bezel design ideal for kiosks and embedded applications
3-year manufacturer’s warranty with 50,000-hour MTBF

Product Specifications

Specification	Details
Model	1590L
Screen Size	15" diagonal
Aspect Ratio	4:03
Native Resolution	1024 x 768 at 60, 75 Hz
Supported Resolutions	640×480, 720×400, 800×500, 800×600
Display Type	LCD with LED backlight
Brightness (Typical)	250 nits (panel), 220 nits (SecureTouch)
Response Time	16 ms
Touch Technology	SecureTouch (Surface Acoustic Wave)
Touch Points	Single-touch and 10-touch (model dependent)
Viewing Angle	Horizontal: 80°/160°, Vertical: 70°/140°
Contrast Ratio	700:01:00
Input Ports	HDMI 1.3, VGA (DB-15), DisplayPort 1.1a
Touch Interface	USB & RS232
Mounting Options	VESA 75mm & 100mm, front/rear/flush/rack mount (with optional kits)
Power Input	12V DC (via optional power brick)
Power Consumption	On: 12.5W, Sleep: 1.5W, Off: 0.5W
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity (Operating)	20% to 80>#/span###
Humidity (Storage)	10% to 95>#/span###
Dimensions (Bezel)	336.4mm x 264.4mm x 41.9mm
Dimensions (Zero-Bezel)	358mm x 284.9mm x 35.6mm
Weight (Unpackaged)	2.9 kg
Weight (Packaged)	4.7 kg
MTBF	50,000 hours demonstrated
Certifications	UL, FCC, RCM, CE, TUV, RoHS, WEEE, and more
Included Accessories	HDMI & VGA cables, USB cable, OSD remote, Quick Start Guide, Mounting Kits
Warranty	3 years standard

Read less...

To contact POS Central about Elo Open Frame Secure Touch Screen Monitor | 1590L use Get a quote.

ELO_1590L_DS(0.23MB)
