EBI - Multi-Channel Temperature Data Logger | EBI 40 TC-02 Get latest price

Read more...

To contact NWI Group about EBI Multi-Channel Temperature Data Logger | EBI 40 TC-02 use Get a quote.

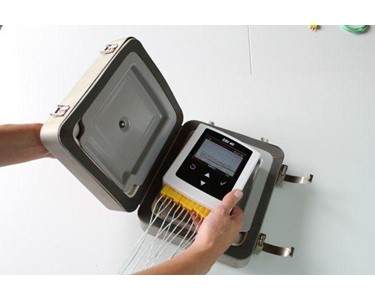

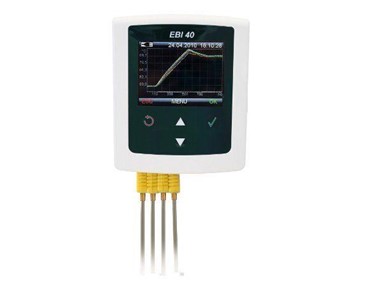

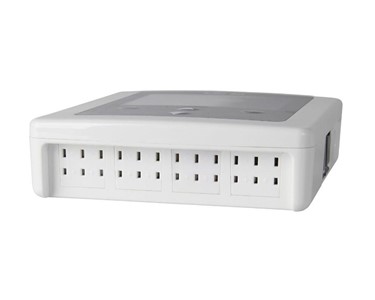

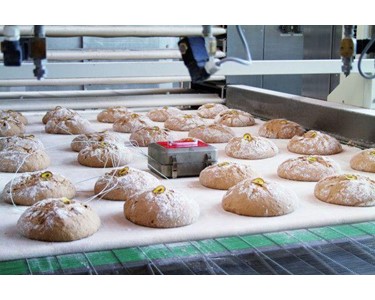

The EBI 40 Multi-Channel Temperature Data Logger records temperatures during process monitoring and validation. Current measurement values and the measurement curve can be read on the multi-colored TFT display. The thermal insulation using the thermo isolation box allows the use of the data logger at very high temperatures. The EBI 40 is suitable for the connection of up to twelve thermocouple probes. Monitoring and validation of processes in: Incubators, Refrigerators, Climate cabinets, Storage rooms, Transport studies and Freeze-dryers etc.

• USB interface for PC connection
• Power supply via USB or battery
• Automatic display deactivation
• Calculation of temperature profiles

Technical Data:

Data memory

20.000 values / channel

Sensor

thermocouple type K, SMP connections

Weight

approx. 400 g

Accuracy

±0.5 °C (25 °C without probe)

Protection class

IP40

Dimensions

140 x 118 x 35 mm without probe

Resolution

0.1 °C

Certificate

Factory calibration certificate

Battery

Battery or USB

Measuring range

-200 °C...+1200 °C

Storage temperature

0 °C...+70 °C
