EAE - E-Kabin S series floor-standing enclosures

Supplier: Mechtric

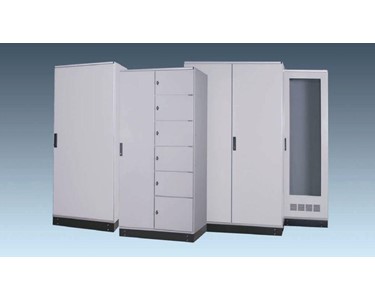

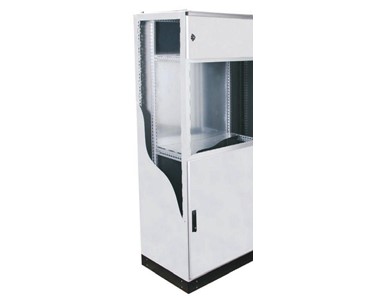

E-Kabin S series floor-standing enclosures

E-Kabin S Series electrical enclosures are designed to be used in indoor electrical installations. Their simple design provides functionality and economic solutions for various applications.

The simple modular design

Receive 4+ weeks from order

Depending on the selected door type, IP55 (plain or glazed) or IP 41 and IP31 (vented) protection is available.

All load-bearing parts are made of 2 mm pre-galvanized steel sheet, finished with epoxy polyester powder paint.

Key Features:

Aesthetical outlook front bar, made of anodized aluminium, provides aesthetical outlook.
Reliable locking system locking system enables the door to be fixed to the framework at four different points.
Functional swing handle - the door opens when the swing handle is lifted and rotated upwards. Locking by key is determined by the user. It can be used without locking.
Protection class IP55 - Foam-in-place gasket applied to door does not loose its elasticity in time and provides protection against dust and water
Easy electrical assembly thanks to robust framework and internal mounting accessories door, back and side panel fixing is carried out after electrical assembly. Internal mounting accessories are designed to be used in all E-Kabin series.
Wide range of Door Type Options • Useful ventilation grill ‘’0’’- none / ‘’1’’- bottom / ‘’3’’- bottom, large For 1, 3 protection class is IP41 • Symmetrical design • Door opening direction can be changed in place Safety glass ‘’C’’ • Robust glass holders • Customized door application
Modular design • Front and rear door possibility • Changeable door opening direction • Corner module

To contact Mechtric about EAE E-Kabin S series floor-standing enclosures use Get a quote.

Depending on the selected door type, IP55 (plain or glazed) or IP 41 and IP31 (vented) protection is available.

All load-bearing parts are made of 2 mm pre-galvanized steel sheet, finished with epoxy polyester powder paint.

Key Features:

Aesthetical outlook front bar, made of anodized aluminium, provides aesthetical outlook.
Reliable locking system locking system enables the door to be fixed to the framework at four different points.
Functional swing handle - the door opens when the swing handle is lifted and rotated upwards. Locking by key is determined by the user. It can be used without locking.
Protection class IP55 - Foam-in-place gasket applied to door does not loose its elasticity in time and provides protection against dust and water
Easy electrical assembly thanks to robust framework and internal mounting accessories door, back and side panel fixing is carried out after electrical assembly. Internal mounting accessories are designed to be used in all E-Kabin series.
Wide range of Door Type Options • Useful ventilation grill ‘’0’’- none / ‘’1’’- bottom / ‘’3’’- bottom, large For 1, 3 protection class is IP41 • Symmetrical design • Door opening direction can be changed in place Safety glass ‘’C’’ • Robust glass holders • Customized door application
Modular design • Front and rear door possibility • Changeable door opening direction • Corner module

Read less...

To contact Mechtric about EAE E-Kabin S series floor-standing enclosures use Get a quote.
