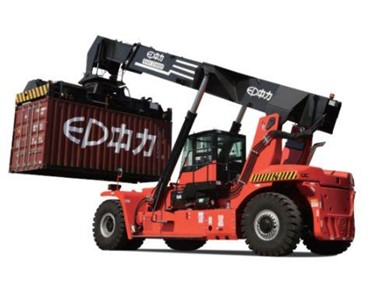

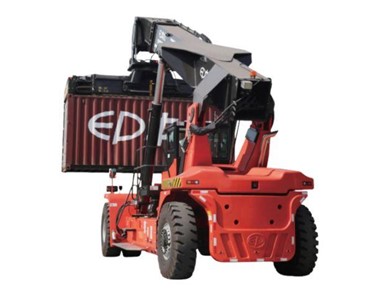

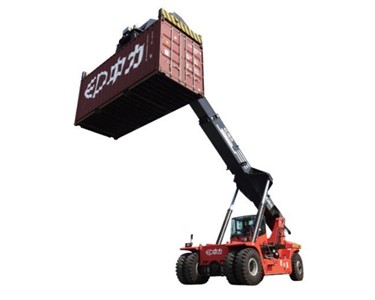

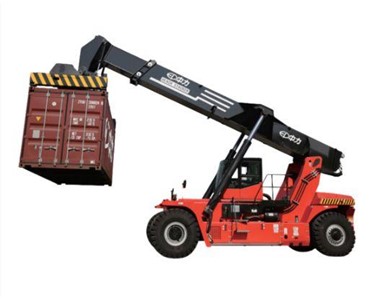

The EP Reach Stacker is designed for 20ft and 40ft containers, primarily used in small or mid-size ports and intermodal terminals to transfer and stack various containers and materials. Compared to forklifts, the Reach Stacker offers several advantages, including greater flexibility, easier operation, enhanced stability, lower tire pressure, and higher stacking and storage capacity. Additionally, it can be operated across containers, making it a more efficient solution for these applications.

Safe & Reliable

Reliable Structure System

Designed with 3D modeling and utilizing simulation software for finite element analysis, the stacker has undergone high-intensity fatigue and vibration tests to ensure the reliability of the entire structure.

Reliable Transmission System

The stacker features a robust transmission system designed for durability and efficiency.

Independent Brake Cooling System

The drive axle brake operates with a separate cooling system, independent of the truck’s oil cooling system, ensuring enhanced safety and extending the service life of the drive axle.

Dynamic Anti-Rollover Protection Technology

• Rear axle unlock system(option)
• Counter weight backwards mechanism

Rear axle unlock system will be triggered once detect overload front. Use rear axle as extra weight to increase stability; and lower counter weight will move backwards to increase safety and avoid revolve.

Overload Protection

Overload protection comes as a standard configuration, with a weight indicator and printing available as an option.

Global Positioning System (Optional)

GPS enables remote monitoring, data recording, and fault diagnosis for enhanced operational efficiency.

Rear View Camera

When reversing, a screen in the cab displays the rearview image, and the reversing radar assists in making operations easier.

Operation Adaptive System

Driving and lifting speeds can be adjusted according to the operator’s habits and preferences for a more customized experience.

High Efficiency

Vertical Lifting Technologies of Boom

The intelligent controller monitors the boom' s parameters at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader, which makes stacking safer and improves efficiency significantly.

Power on Demand Technology

The "Power on Demand" system automatically increases engine revs based on the load on the spreader and the required lift speed. This enables precise, millimeter-scale actions to be performed simultaneously, improving overall efficiency.

Weighing and Printing Technology

This feature allows container quantity and weight to be printed at any time, enhancing work efficiency.

Comfortable Operation Environment

Designed with operator comfort in mind, the stacker provides a broad view of the work area. The control devices are strategically positioned to reduce operator fatigue and improve ease of use.

Energy Saving Container Reach Stacker

Hydraulic Load Sensing System

Automatically adjusts pump displacement according to the load, achieving high-precision flow control. This results in significant energy savings and reduced consumption.

Dynamic Power Matching Control System

Recognizes dynamic power requirements based on load changes and adjusts engine speed accordingly. The output power automatically adapts to the load and working conditions, greatly reducing energy consumption.

Smart Design for Safety and Efficiency

• Safety & Reliability: Features dynamic anti-rollover protection technology, an integrated brake cooling system, GPS, and an overload protection system.
• Efficiency & Comfort: Incorporates multi-motion linkage design, spreader motion ratio control technology, and micro-move control technology for easier and more precise operation.
• Structural Optimization: Designed with enhanced strength and durability for improved performance

Technical Specifications

Capacity (kg):

• 45000 kg

Load Centre Distance (mm):

• 1900/3850/6350

Max Height (mm):

• 15100mm

Battery Voltage/Normal Capacity:

• 24v/400ah

Travel Speed: (km/h)

• 22/25 kmh

Drive Control:

• VOLVO TAD1151VE

Type:

• Container Reach Stacker
