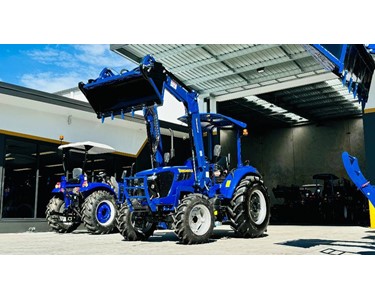

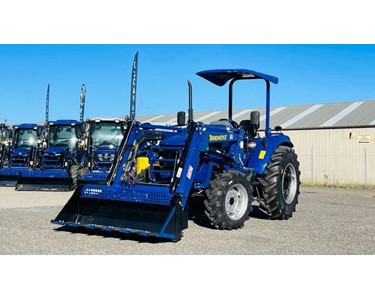

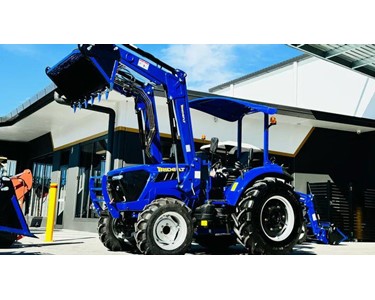

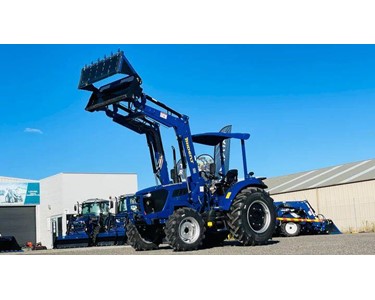

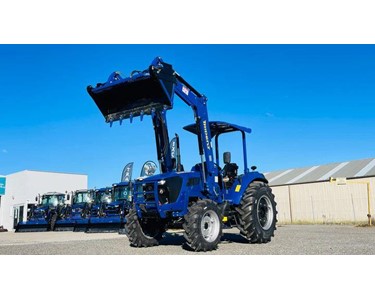

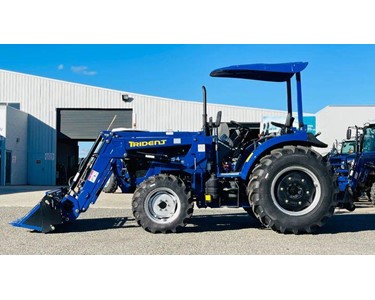

Canopy Farm Tractor Diesel Type | 75Hp 4WD Price Guide: $33,990 Get latest price

Read more...

To contact Nicola's Machinery about Canopy Farm Tractor Diesel Type | 75Hp 4WD use Get a quote.

Main Features:

• 1,000KG front end loader lifting capacity
• Gross weight 4,100KG
• 3-point linkage quick hitch hooks for easy implement attachment
• Self-leveling 4in1 bucket
• Quick release front end loader with euro quick hitch
• Extra wheel weights for improved performance and stability
• Heavy duty chassis
• 4 cylinder naturally aspirated direct injection diesel engine (no ECU)
• Hydraulic up & down pressure power 3-point linkage (with floating function)
• Additional 3-point linkage control lever at the rear for easier control
• Full LED lights front & rear
• 12 forward + 12 reverse shuttle shift
• 4WD with diff lock
• Power steering
• Radial tyres 280/85R20,420/85R28 with rear wheel weights
• Suspension seat
• Dual stage dry clutch
• Oil immersed braking system
• Two speed PTO (540/760 RPM)
• Dual rear remotes
• Flat & clear deck with side placed gear selectors

Specifications

Engine

• Engine model: XINCHAI A4K43T75
• Engine type: diesel
• Engine gross power: 55.5KW
• PTO power: 46.9KW
• No. of cylinders: 4
• Rated speed: 2,400RPM
• Battery: 12V
• Alternator: 14V/0.75KW
• Fuel tank capacity: 80L

Drivetrain

• Shuttle transmission: 12 forward + 12 reverse shuttle shift
• Brakes: oil immersed
• Clutch: dual stage dry clutch
• PTO: 540/760 RPM

Hydraulic

• Hydraulic remotes: two groups at rear 3PL, one group at FEL
• Hydraulic up & down pressure-controlled 3-point linkage (with floating function)
• TPK cat: II
• Total hydraulic flow: 72L/MIN
• 3PL Cat II lift capacity: 1,500KG max

Dimensions

• Overall weight: 4,100KG
• Overall length: 5,150MM
• Overall width: 1,950 - 2,050MM (adjustable)
• Overall height: 2,750MM
• Min. ground clearance: 400MM
• Min. turning radius: 3.9±0.3M

Read less...
