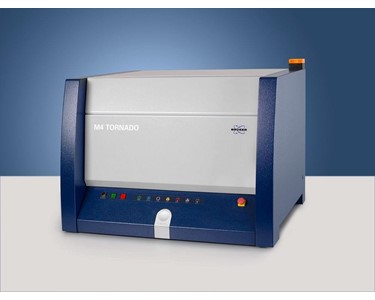

Benchtop XRF Analyzer Bruker M4 TORNADO Get latest price

Read more...

To contact PORTABLE SPECTRAL SERVICES about Benchtop XRF Analyzer Bruker M4 TORNADO use Get a quote.

Micro XRF is a rapid technique for acquiring qualitative and quantitative data at a very high spatial resolution (µm scale). The technique is rapid and non-destructive, and is used to quickly acquire qualitative and quantitative geochemical data at high spatial resolution (i.e. mm-scale).

Main Features

• Produces elemental maps at micro-scale (19 x 16 cm)
• Mineral Mapping through AMICS
• Quickly acquire qualitative and quantitative data at a high spatial resolution (µm scale)
• Complete control of tube parameters, filters, optical microscopes, sample illumination and sample positioning
• Measure in air or vacuum
• Up to 5 filters
• 1ms minimum dwell time per pixel
• Results presented as element distribution (line scan, mapping), quantification results, statistical evaluation
• Use Aperture Management System (AMS) for high depth of field and low energy dependent spot size variation

Other Features

• Samples analysed with minimal to no sample preparation
• Measure solids, particles or liquids
• Record spectra
• Map uneven samples
• Quick-change stage with optional specimen holders, reducing sample exchange and setup time

AMICS

Advanced Mineral Identification & Characterisation System known as AMICS, is a software that can provide advanced semi-quantitative information on mineral abundance, assay grade, grain size and distribution, in addition to visualisation of the textures and spatial arrangements of the minerals.

A single dataset collected by the μ-XRF can provide both chemical information and mineralogy at a micro-scale in a spatial context. This offers detailed knowledge of samples to develop an advanced understanding of a deposit. Further to this, the practicality of μ-XRF use for commercial purposes advantageously bridges the gap between the small scale of Scanning Electron Microscopy (SEM), and analysis at the meter scale
