WOMA - WOMA® TURBO NOZZLE COMPACT TD-C

Supplier: WOMA Australia

WOMA® TURBO NOZZLE COMPACT TD-C

Ideal for space restricted environments, impresses with low vibration emission.

Video for WOMA WOMA® TURBO NOZZLE COMPACT TD-C

Compact Design

Receive 1-3 days from order

Specifications of this product

The TD-C is used for industrial cleaning, surface treatment andremoval tasks and is designed for a pressure from 500 bar 3,000 bar and a maximum nominal fl ow rate of max. 45 l/min. The TD-C is a lightweight and compact alternative to the existing TD-3000 SCS series. In direct comparison, the dimensions and weight have been reduced. The nozzle can therefore also be used in confined cleaning environments and impresses with its low vibration emissions

Features of this product

Operating pressure 500 - 3,000 bar
Nominal Fow rate max. 45 l/min
Temperature of medium max. 95 °C
Weight 1.2 kg with nozzle carrier head
0.9 kg without nozzle carrier head
Dimensions 174 mm x 54mm
Number of nozzles max. 4
Thread 9/16” – 18 UNF

Advatages of this product

Optimised with substantially reduced dimensions
3-stage speed setting via intuitive slider control
Speed regulation via magnetic fi eld-oriented induction brake,
wear-free and without friction loss
Nozzle carrier head with hydraulic self-drive through adjusted
nozzle openings
Easy maintenance and short set-up times – no special tools required.

Applications

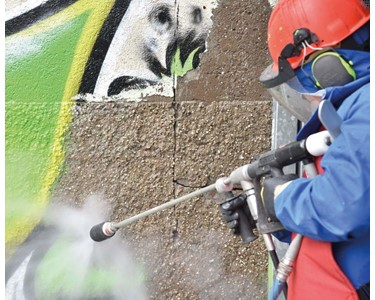

From 500 bar cleaning of surfaces, e.g. graffi ti removal
From 1,000 bar treatment of surfaces, e.g. roughening
From 2,500 bar removal of surfaces, e.g. concrete removal

To contact WOMA Australia about WOMA WOMA® TURBO NOZZLE COMPACT TD-C use Get a quote.

Specifications of this product

The TD-C is used for industrial cleaning, surface treatment andremoval tasks and is designed for a pressure from 500 bar 3,000 bar and a maximum nominal fl ow rate of max. 45 l/min. The TD-C is a lightweight and compact alternative to the existing TD-3000 SCS series. In direct comparison, the dimensions and weight have been reduced. The nozzle can therefore also be used in confined cleaning environments and impresses with its low vibration emissions

Features of this product

Operating pressure 500 - 3,000 bar
Nominal Fow rate max. 45 l/min
Temperature of medium max. 95 °C
Weight 1.2 kg with nozzle carrier head
0.9 kg without nozzle carrier head
Dimensions 174 mm x 54mm
Number of nozzles max. 4
Thread 9/16” – 18 UNF

Advatages of this product

Optimised with substantially reduced dimensions
3-stage speed setting via intuitive slider control
Speed regulation via magnetic fi eld-oriented induction brake,
wear-free and without friction loss
Nozzle carrier head with hydraulic self-drive through adjusted
nozzle openings
Easy maintenance and short set-up times – no special tools required.

Applications

From 500 bar cleaning of surfaces, e.g. graffi ti removal
From 1,000 bar treatment of surfaces, e.g. roughening
From 2,500 bar removal of surfaces, e.g. concrete removal

Read less...

To contact WOMA Australia about WOMA WOMA® TURBO NOZZLE COMPACT TD-C use Get a quote.
