Weldclass - On-Torch Welding Fume Extractor ALLCLEAR® MT84 Price Guide: $5,264 Get latest price

Read more...

To contact BST Group about Weldclass On-Torch Welding Fume Extractor ALLCLEAR® MT84 use Get a quote.

Specifications of this product

• Power supply: Single phase ~230V 15A
• Dimensions (mm): H1070 x W470 x L485
  Length 485mm excluding inlet tube, length 600mm including inlet tube
• Weight: 34kg
• Motor size: 2 x 1.3kw = total 2.6kw
• Max air flow: 380m³ / hour
• Max suction pressure: 25,000pa
• Filter type: M Class PTFE 99.9% 0.3μm, conical cartridge
• Filter surface area: 4m² with conical anti-clog technology
• Filter cleaning: in-situ cleaning via jet-clean funtion, remove/clean filter and dust bin for periodic maitenance
• Noise level: 72 dBA
• Max suction hose length: 20m

Features of this product

• Made in Europe
• Dual motors for powerful, best-in-class suction
• High extraction performance: max suction pressure 25,000pa, max air flow 380m³/hour

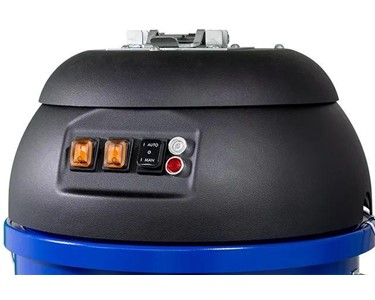

• Auto or Manual On/Off controls: Auto syncs with MIG torch trigger via current sensor*
• Spark arrestor/filter shields filter from coarse/hot particles, and reduces fire risk**

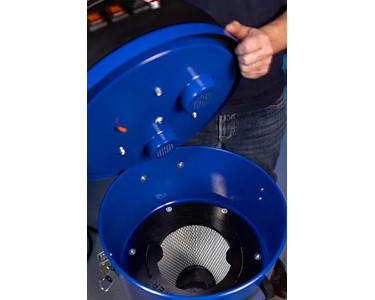

• Cleanable filter for extended service life & reduced operating cost
• Unique Anti-Clog filter technology: Conical filter and upward airflow prevents debris buildup, boosting airflow and filter life
• Large dust collection bin, allows safe removal of dust ejected from filter cleaning
• PFTE-coated filter for ease of cleaning
• Full filter warning
• Individual on/off control of each motor (1 motor for standard suction power, 2 motors for maximum suction)

Applications of this product

• Gas MIG welding
• Gasless and Flux-Core welding
• NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

Why choose this product

• Fume collection that follows your weld
• 7 Year Warranty Offer*
• Auto On-Off, syncs with MIG torch trigger
• Comply with WHS audits by keeping your workers safe from toxic welding fumes
