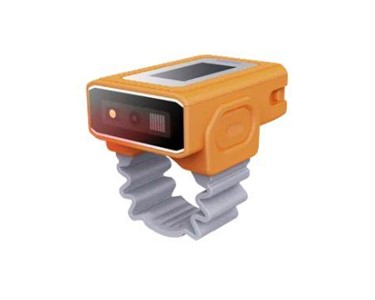

Wearable Barcode Scanner 3 to 150 cm ...
It pairs seamlessly with mobile and various smart terminal devices, supporting multiple operating systems (Android, Windows, Linux, iOS) and phones applications. This adaptability to diverse usage scenarios delivers a comprehensive wearable solution that significantly improves operational efficiency.
Product characteristics
Product Parameter:
| Memory: FLASH / 8MB |
| Scanning Engine: Supports 1D / 2D |
| Scanning Method: Touch Scan |
| Scanning Depth: 3 to 150 cm |
| Dimensions: 13mm × 27mm × 39mm (H × W × D) |
| Weight: 17 g (excluding finger strap) |
| Battery Life: Continuous Operate 8–10 hours |
| Power Adapter Input: AC 100–240 V, 50/60 Hz, 0.5 A |
| Output: DC 3.7 V, 2.5 A |
| Battery Type: 220 mAh Lithium Battery |
| Minimum Charging Current: 0.2 C |
| Charging Time: 1.5 hours |
| Notification Methods: buzzer, vibration, and lighting |
| Field of view angle: horizontal 42°, vertical 28° |
| Firmware updates support OTA (Over-The-Air) online updating |
| Soft LED supplementary lighting for scanning |
| Screen display: 0.83 inch; capable of showing battery level, Bluetooth connection status, barcode count, date, |
| simple programming, user ID, job type, and more. |
| Operating Temperature: -10 ? to 50 ? |
| Storage Temperature: -20 ? to 70 ? |
| Relative Humidity: 5% to 95% RH |
| Protection Rating: IP68 |
| Rolling Resistance: Withstands 1,000 Rolls from 0.5 Meters Height |
| Barcode Types: 1D / 2D |
| Barcode Density: ≥5 mil |
| Scanning Distance: 3 cm to 150 cm (depending on barcode density and symbology) |
| Decoding Capabilities: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSl, RSS, DF417, MicroPDF417, Composite, RSS, TLC 39, Datamatrix, QRcode,MicroQRcode, Aztec, Postal Codes: US Post Net; US Planet; UK Postal; Japan Postal Dutch Postal (KlX) and others. |
| Bluetooth BLE with Bluetooth 5.1 protocol; supports HID/SPP profiles and OTA upgrades. |
| Communication Range: 10 to 100 meters (open area) |
To contact Techsorta Pty Ltd about Wearable Barcode Scanner 3 to 150 cm Scanning Depth | CR-30 use Get a quote.
It pairs seamlessly with mobile and various smart terminal devices, supporting multiple operating systems (Android, Windows, Linux, iOS) and phones applications. This adaptability to diverse usage scenarios delivers a comprehensive wearable solution that significantly improves operational efficiency.
Product characteristics
Product Parameter:
| Memory: FLASH / 8MB |
| Scanning Engine: Supports 1D / 2D |
| Scanning Method: Touch Scan |
| Scanning Depth: 3 to 150 cm |
| Dimensions: 13mm × 27mm × 39mm (H × W × D) |
| Weight: 17 g (excluding finger strap) |
| Battery Life: Continuous Operate 8–10 hours |
| Power Adapter Input: AC 100–240 V, 50/60 Hz, 0.5 A |
| Output: DC 3.7 V, 2.5 A |
| Battery Type: 220 mAh Lithium Battery |
| Minimum Charging Current: 0.2 C |
| Charging Time: 1.5 hours |
| Notification Methods: buzzer, vibration, and lighting |
| Field of view angle: horizontal 42°, vertical 28° |
| Firmware updates support OTA (Over-The-Air) online updating |
| Soft LED supplementary lighting for scanning |
| Screen display: 0.83 inch; capable of showing battery level, Bluetooth connection status, barcode count, date, |
| simple programming, user ID, job type, and more. |
| Operating Temperature: -10 ? to 50 ? |
| Storage Temperature: -20 ? to 70 ? |
| Relative Humidity: 5% to 95% RH |
| Protection Rating: IP68 |
| Rolling Resistance: Withstands 1,000 Rolls from 0.5 Meters Height |
| Barcode Types: 1D / 2D |
| Barcode Density: ≥5 mil |
| Scanning Distance: 3 cm to 150 cm (depending on barcode density and symbology) |
| Decoding Capabilities: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSl, RSS, DF417, MicroPDF417, Composite, RSS, TLC 39, Datamatrix, QRcode,MicroQRcode, Aztec, Postal Codes: US Post Net; US Planet; UK Postal; Japan Postal Dutch Postal (KlX) and others. |
| Bluetooth BLE with Bluetooth 5.1 protocol; supports HID/SPP profiles and OTA upgrades. |
| Communication Range: 10 to 100 meters (open area) |
To contact Techsorta Pty Ltd about Wearable Barcode Scanner 3 to 150 cm Scanning Depth | CR-30 use Get a quote.
