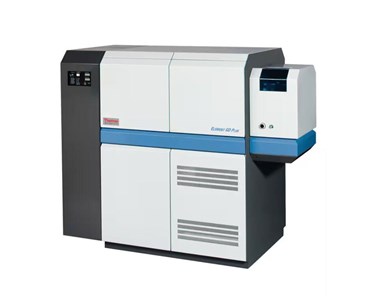

Thermo Scientific - Element GD Plus™ GD-MS Glow Discharge Mass Spectrometer

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Element GD Plus™ GD-MS Glow Discharge Mass Spectrometer

High-resolution glow discharge mass spectrometer enabling direct solid sample analysis with automatic cross-calibration and ultra-trace level detection.

Ultra-wide dynamic range with interference-free, direct solid sample analysis down to the sub-ppb level.

The Element GD Plus GD-MS is a glow discharge mass spectrometer designed for direct analysis of conductive and non-conductive solid materials. It provides a linear dynamic range greater than 12 orders of magnitude, enabling simultaneous determination of matrix elements, trace, and ultra-trace elements within a single scan.

Features

Glow discharge ion source with fast-flow design for high sensitivity and high sputter rates
Measures almost all elements in the periodic table directly from solids, both conductive and non-conductive
Ultra-low detection limits down to sub-ppb for most elements
Automatic cross-calibration between detection modes ensures reliable, interference-free results
No need for acid digestion or calibration standards for routine operation
Enables rapid depth profiling for coatings and layered samples with nanometre resolution
Up to 5 samples per hour for high throughput laboratories
Exceptional stability and reproducibility thanks to fixed slit design and mass stabilisation
Flexible anode diameter and adaptive sputter rates for advanced profiling applications

Applications

Aerospace: Nickel superalloys, composites, coatings, diffusion layers
Microelectronics: Copper, alumina powders, sputter targets
Renewable energy: Silicon blocks, wafers, solar cells
Biopharma, medical, food: Stainless steel, metal alloys

Specifications

Dynamic Range	> 10¹² linear with automatic cross-calibration
Mass Resolution	3 fixed settings: =300, =4,000, =10,000
Mass Stability	25 ppm/8 h
Sensitivity	> 1 × 10¹⁰ cps (1.6 × 10^-9 A) for copper at medium resolution
Power	3-phase, 230/400 V ± 10%, 50/60 Hz, 32 A/fuse per phase
Type	GD-Mass Spectrometer

Additional Information

High throughput and minimal sample prep reduce your overall analysis cost
Unique ion source maximises ion transmission and minimises polyatomic interferences
Optional CNO mode for sub-ppm C, N, O detection in high purity samples
All results delivered without the need for calibration standards

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Element GD Plus™ GD-MS Glow Discharge Mass Spectrometer use Get a quote.

Features

Glow discharge ion source with fast-flow design for high sensitivity and high sputter rates
Measures almost all elements in the periodic table directly from solids, both conductive and non-conductive
Ultra-low detection limits down to sub-ppb for most elements
Automatic cross-calibration between detection modes ensures reliable, interference-free results
No need for acid digestion or calibration standards for routine operation
Enables rapid depth profiling for coatings and layered samples with nanometre resolution
Up to 5 samples per hour for high throughput laboratories
Exceptional stability and reproducibility thanks to fixed slit design and mass stabilisation
Flexible anode diameter and adaptive sputter rates for advanced profiling applications

Applications

Aerospace: Nickel superalloys, composites, coatings, diffusion layers
Microelectronics: Copper, alumina powders, sputter targets
Renewable energy: Silicon blocks, wafers, solar cells
Biopharma, medical, food: Stainless steel, metal alloys

Specifications

Dynamic Range	> 10¹² linear with automatic cross-calibration
Mass Resolution	3 fixed settings: =300, =4,000, =10,000
Mass Stability	25 ppm/8 h
Sensitivity	> 1 × 10¹⁰ cps (1.6 × 10^-9 A) for copper at medium resolution
Power	3-phase, 230/400 V ± 10%, 50/60 Hz, 32 A/fuse per phase
Type	GD-Mass Spectrometer

Additional Information

High throughput and minimal sample prep reduce your overall analysis cost
Unique ion source maximises ion transmission and minimises polyatomic interferences
Optional CNO mode for sub-ppm C, N, O detection in high purity samples
All results delivered without the need for calibration standards

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Element GD Plus™ GD-MS Glow Discharge Mass Spectrometer use Get a quote.
