Rotary Screw Air Compressor 7.5kW to 15kW ...

Rotary Screw Air Compressor 7.5kW to 15kW | Trinity Series

Supplier: Anest Iwata Australia

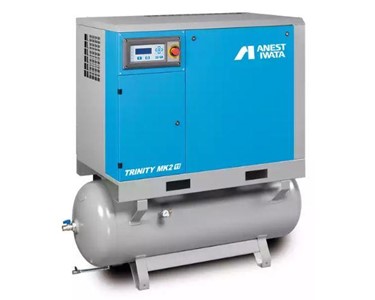

TRINITY MK2 series compressors featured benefits include filtration, refrigerated air dryer, air receiver with an energy efficient air end.

Receive 1-3 days from order

TRINITY MK2 is ready for immediate installation with no additional piping or wiring. Having a small foot print and low noise allows for the TRINITY MK2 to be installed in the immediate workplace meeting all Occupational Health and Safety regulations.

The advanced controllers fitted to the TRINITY MK2 range have been specifically developed to guarantee optimum monitoring and regulation of the compressor’s operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety. TRINITY MK2 screw compressors offer a complete package ranging from 7.5kW to 15kW with a pressure range from 8 Bar to 13 Bar, offering a clean oil free air supply to 0.1 mg/m3/min and a pressure dew point of +3°C.

TRINITY MK2 supplies operators with a high level of energy efficient clean compressed air to the production with the ability to tailor the output of the compressor through the control panel, minimising service and running costs.

Specification

Product	Tank Size	Power kW	Free Air Delivery cfm	Max Pressure	Sound Level dB(A)	Connection G	Weight	Approx. Dimensions (LxWxH)
TRINITY MK2 7.5-08-270 DF	270	7.5	44	8	62	3/4"	326	1560 x 700 x 158
TRINITY MK2 7.5-10.270 DF	270	7.5	35	10	62	3/4"	326	1560 x 700 x 1580
TRINITY MK2 7.5-13-270 DF	270	7.5	26	13	62	3/4"	336	1560 x 700 x 1580
TRINITY MK2 11-08-270 DF	270	11	58	8	65	3/4"	350	1560 x 700 x 1580
TRINITY MK2 11-10.270 DF	270	11	53	10	65	3/4"	350	1560 x 700 x 1580
TRINITY MK2 11-13-270 DF	270	11	41	13	65	3/4"	360	1560 x 700 x 1580
TRINITY MK2 15-08-270 DF	270	15	76	8	65	3/4"	376	1560 x 700 x 1580
TRINITY MK2 15-10-270 DF	270	15	65	10	65	3/4"	376	1560 x 700 x 1580
TRINITY MK2 15-13-270	270	15	55	13	65	3/4"	386	1560 x 700 x 158

Specification

Product	Tank Size	Power kW	Free Air Delivery cfm	Max Pressure	Sound Level dB(A)	Connection G	Weight	Approx. Dimensions (LxWxH)
TRINITY MK2 7.5-08-270 DF	270	7.5	44	8	62	3/4"	326	1560 x 700 x 158
TRINITY MK2 7.5-10.270 DF	270	7.5	35	10	62	3/4"	326	1560 x 700 x 1580
TRINITY MK2 7.5-13-270 DF	270	7.5	26	13	62	3/4"	336	1560 x 700 x 1580
TRINITY MK2 11-08-270 DF	270	11	58	8	65	3/4"	350	1560 x 700 x 1580
TRINITY MK2 11-10.270 DF	270	11	53	10	65	3/4"	350	1560 x 700 x 1580
TRINITY MK2 11-13-270 DF	270	11	41	13	65	3/4"	360	1560 x 700 x 1580
TRINITY MK2 15-08-270 DF	270	15	76	8	65	3/4"	376	1560 x 700 x 1580
TRINITY MK2 15-10-270 DF	270	15	65	10	65	3/4"	376	1560 x 700 x 1580
TRINITY MK2 15-13-270	270	15	55	13	65	3/4"	386	1560 x 700 x 158

Read less...
