Rotary Screw Air Compressor 7.5-250 kW | ...

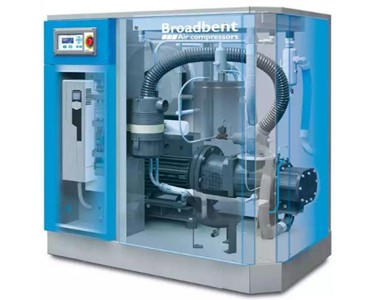

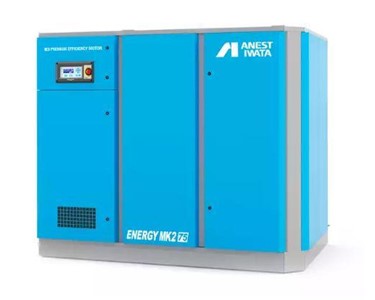

Rotary Screw Air Compressor 7.5-250 kW | Energy Series

Supplier: Anest Iwata Australia

ENERGY MK2 and ENERGY variable speed screw compressors allow for power savings on average between 30%-40% over conventional controlled compressors.

Receive 1-3 days from order

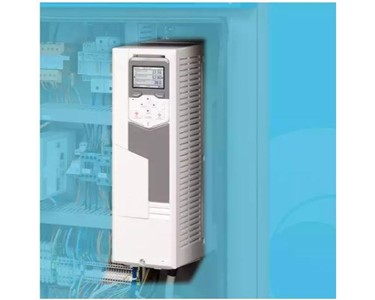

ENERGY Series allows for an air supply with minimal peaks, in doing so supplying only the air required for production minimising service costs and operating costs. Designed to operate in the harshest working conditions 24 hours per day. The controller is able to control up to 4 units from one common control panel. All ENERGY Series is equipped as standard with power filters, harmonising the incoming voltage and protecting the inverter and compressor components from surges.

Specification

Product	Power kW	Free Air Delivery cfm	Max Pressure	Sound Level dB(A)	Weight	Approx. Dimensions (LxWxH)
ENERGY MK2 SERIES 7.5 - 90 kW
ENERGY MK2 7.5 - 7.5	7.5	46	7.5	63	194	940 x 770 x 1020
ENERGY MK2 7.5 - 10	7.5	39	10	63	194	940 x 770 x 1020
ENERGY MK2 16 - 7.5	15	88	7.5	68	595	1200 x 810 x 1180
ENERGY MK2 16 - 10	15	74	10	68	595	1200 x 810 x 1180
ENERGY MK2 18.5 - 7.5	18.5	109	7.5	62	696	1500 x 1000 x 1600
ENERGY MK2 18.5 - 10	18.5	92	10	62	696	1500 x 1000 x 1600
ENERGY MK2 22 - 7.5	22	127	7.5	64	731	1500 x 1000 x 1600
ENERGY MK2 22 - 10	22	106	10	62	731	1500 x 1000 x 1600
ENERGY MK2 22 - 13	22	90	13	62	731	1500 x 1000 x 1600
ENERGY MK2 30 - 7.5	30	171	7.5	68	1100	1800 x 1160 x 1780
ENERGY MK2 30 - 10	30	152	10	68	1100	1800 x 1160 x 1780
ENERGY MK2 37 - 7.5	37	233	7.5	70	1190	1800 x 1160 x 1780
ENERGY MK2 37 - 10	37	191	10	69	1130	1800 x 1160 x 1780
ENERGY MK2 37 - 13	37	160	13	67	1130	1800 x 1160 x 1780
ENERGY MK2 45 - 7.5	45	290	7.5	72	1326	1920 x 1420 x 1880
ENERGY MK2 45 - 10	45	237	10	72	1326	1920 x 1420 x 1880
ENERGY MK2 55 - 7.5	55	357	7.5	72	1383	1920 x 1420 x 1880
ENERGY MK2 55 - 10	55	293	10	72	1383	1920 x 1420 x 1880
ENERGY MK2 55 -13	55	230	13	72	1383	1920 x 1420 x 1880
ENERGY MK2 75 - 7.5	75	445	7.5	69	3000	2560 x 1660 x 2230
ENERGY MK2 75 - 10	75	371	10	69	3000	2560 x 1660 x 2230
ENERGY MK2 75 -13	75	307	13	69	3000	2560 x 1660 x 2230
ENERGY MK2 76 - 7.5	75	477	7.5	67	3035	2560 x 1660 x 2230
ENERGY MK2 76 - 10	75	413	10	66	3035	2560 x 1660 x 2230
ENERGY MK2 76 - 13	75	342	13	67	3035	2560 x 1660 x 2230
ENERGY MK2 90 - 7.5	90	562	7.5	68	3110	2560 x 1660 x 2230
ENERGY MK2 90 - 10	90	473	10	70	3110	2560 x 1660 x 2230
ENERGY MK2 90 - 13	90	367	13	66	3110	2560 x 1660 x 2230
ENERGY SERIES 110 - 250 kW
ENERGY 110 - 7.5	110	653	7.5	75	2860	2900 x 1550 x 2160
ENERGY 110 - 10	110	561	10	75	2860	2900 x 1550 x 2160
ENERGY 110 - 13	110	477	13	75	2860	2900 x 1550 x 2160
ENERGY 132 - 7.5	132	784	7.5	75	2860	2900 x 1550 x 2160
ENERGY 132 - 10	132	671	10	75	2860	2900 x 1550 x 2160
ENERGY 132 - 13	132	569	13	75	2860	2900 x 1550 x 2160
ENERGY 150 - 7.5	160	904	7.5	74	3350	2900 x 1550 x 2160
ENERGY 150 - 10	160	809	10	74	3350	2900 x 1550 x 2160
ENERGY 150 - 13	160	685	13	74	3350	2900 x 1550 x 2160
ENERGY 200 - 7.5	200	1183	7.5	76	4670	3300 x 2100 x 2160
ENERGY 200 - 10	200	1006	10	76	4670	3300 x 2100 x 2160
ENERGY 200 - 13	200	869	13	76	4670	3300 x 2100 x 2160
ENERGY 250 - 7.5	250	1487	7.5	76	4830	3300 x 2100 x 2160
ENERGY 250 - 10	250	1261	10	76	4830	3300 x 2100 x 2160
ENERGY 250 - 13	250	1081	13	76	4830	3300 x 2100 x 2160

Specification

Product	Power kW	Free Air Delivery cfm	Max Pressure	Sound Level dB(A)	Weight	Approx. Dimensions (LxWxH)
ENERGY MK2 SERIES 7.5 - 90 kW
ENERGY MK2 7.5 - 7.5	7.5	46	7.5	63	194	940 x 770 x 1020
ENERGY MK2 7.5 - 10	7.5	39	10	63	194	940 x 770 x 1020
ENERGY MK2 16 - 7.5	15	88	7.5	68	595	1200 x 810 x 1180
ENERGY MK2 16 - 10	15	74	10	68	595	1200 x 810 x 1180
ENERGY MK2 18.5 - 7.5	18.5	109	7.5	62	696	1500 x 1000 x 1600
ENERGY MK2 18.5 - 10	18.5	92	10	62	696	1500 x 1000 x 1600
ENERGY MK2 22 - 7.5	22	127	7.5	64	731	1500 x 1000 x 1600
ENERGY MK2 22 - 10	22	106	10	62	731	1500 x 1000 x 1600
ENERGY MK2 22 - 13	22	90	13	62	731	1500 x 1000 x 1600
ENERGY MK2 30 - 7.5	30	171	7.5	68	1100	1800 x 1160 x 1780
ENERGY MK2 30 - 10	30	152	10	68	1100	1800 x 1160 x 1780
ENERGY MK2 37 - 7.5	37	233	7.5	70	1190	1800 x 1160 x 1780
ENERGY MK2 37 - 10	37	191	10	69	1130	1800 x 1160 x 1780
ENERGY MK2 37 - 13	37	160	13	67	1130	1800 x 1160 x 1780
ENERGY MK2 45 - 7.5	45	290	7.5	72	1326	1920 x 1420 x 1880
ENERGY MK2 45 - 10	45	237	10	72	1326	1920 x 1420 x 1880
ENERGY MK2 55 - 7.5	55	357	7.5	72	1383	1920 x 1420 x 1880
ENERGY MK2 55 - 10	55	293	10	72	1383	1920 x 1420 x 1880
ENERGY MK2 55 -13	55	230	13	72	1383	1920 x 1420 x 1880
ENERGY MK2 75 - 7.5	75	445	7.5	69	3000	2560 x 1660 x 2230
ENERGY MK2 75 - 10	75	371	10	69	3000	2560 x 1660 x 2230
ENERGY MK2 75 -13	75	307	13	69	3000	2560 x 1660 x 2230
ENERGY MK2 76 - 7.5	75	477	7.5	67	3035	2560 x 1660 x 2230
ENERGY MK2 76 - 10	75	413	10	66	3035	2560 x 1660 x 2230
ENERGY MK2 76 - 13	75	342	13	67	3035	2560 x 1660 x 2230
ENERGY MK2 90 - 7.5	90	562	7.5	68	3110	2560 x 1660 x 2230
ENERGY MK2 90 - 10	90	473	10	70	3110	2560 x 1660 x 2230
ENERGY MK2 90 - 13	90	367	13	66	3110	2560 x 1660 x 2230
ENERGY SERIES 110 - 250 kW
ENERGY 110 - 7.5	110	653	7.5	75	2860	2900 x 1550 x 2160
ENERGY 110 - 10	110	561	10	75	2860	2900 x 1550 x 2160
ENERGY 110 - 13	110	477	13	75	2860	2900 x 1550 x 2160
ENERGY 132 - 7.5	132	784	7.5	75	2860	2900 x 1550 x 2160
ENERGY 132 - 10	132	671	10	75	2860	2900 x 1550 x 2160
ENERGY 132 - 13	132	569	13	75	2860	2900 x 1550 x 2160
ENERGY 150 - 7.5	160	904	7.5	74	3350	2900 x 1550 x 2160
ENERGY 150 - 10	160	809	10	74	3350	2900 x 1550 x 2160
ENERGY 150 - 13	160	685	13	74	3350	2900 x 1550 x 2160
ENERGY 200 - 7.5	200	1183	7.5	76	4670	3300 x 2100 x 2160
ENERGY 200 - 10	200	1006	10	76	4670	3300 x 2100 x 2160
ENERGY 200 - 13	200	869	13	76	4670	3300 x 2100 x 2160
ENERGY 250 - 7.5	250	1487	7.5	76	4830	3300 x 2100 x 2160
ENERGY 250 - 10	250	1261	10	76	4830	3300 x 2100 x 2160
ENERGY 250 - 13	250	1081	13	76	4830	3300 x 2100 x 2160

Read less...

To contact Anest Iwata Australia about Rotary Screw Air Compressor 7.5-250 kW | Energy Series use Get a quote.

ENERGY MK2_02_2020(1.01MB)
