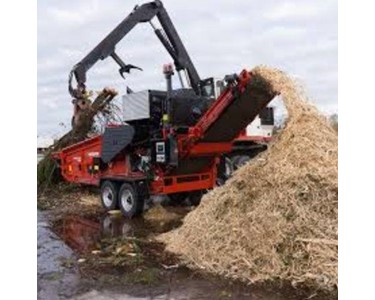

Morbark - 2400X Wood Hog Horizontal Grinder Get latest price

FEATURES AND BENEFITS

• Sloped infeed sides give the operator improved visibility and loading efficiency.
• The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
• Single side-load grate system and single side-load anvil allows for single-person removal.
• Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine

Specifications

• Length (conveyor folded): 9.02 m
• Height (conveyor folded): 3.45 m
• Width: 2.29 m
• Gross Weight (approximate): 9026.5 kg
• Axle Weight (approximate): 8119.3 kg
• Tongue Weight (approximate): 907.2 kg
• Engine: Isuzu
• Horsepower: 140 kW
• Fuel Capacity (tank): 352 litres
• Hydraulic Oil: 238.5 litres
• Infeed Opening: 48.3 x 134.6 cm
• Screen Area: 8,413 square cm
• Brakes: Electric
• Towing Arrangement: Pintle hitch
• Tires: (4) 235-75R-17.5H
• Tracks:  Optional

To contact Lincom Group about Morbark 2400X Wood Hog Horizontal Grinder use Get a quote.

FEATURES AND BENEFITS

• Sloped infeed sides give the operator improved visibility and loading efficiency.
• The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
• Single side-load grate system and single side-load anvil allows for single-person removal.
• Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine

Specifications

• Length (conveyor folded): 9.02 m
• Height (conveyor folded): 3.45 m
• Width: 2.29 m
• Gross Weight (approximate): 9026.5 kg
• Axle Weight (approximate): 8119.3 kg
• Tongue Weight (approximate): 907.2 kg
• Engine: Isuzu
• Horsepower: 140 kW
• Fuel Capacity (tank): 352 litres
• Hydraulic Oil: 238.5 litres
• Infeed Opening: 48.3 x 134.6 cm
• Screen Area: 8,413 square cm
• Brakes: Electric
• Towing Arrangement: Pintle hitch
• Tires: (4) 235-75R-17.5H
• Tracks:  Optional
