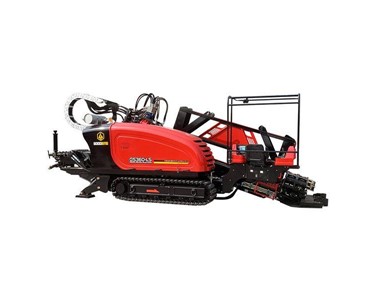

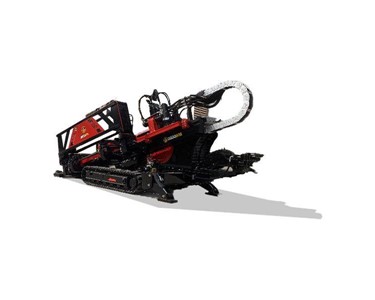

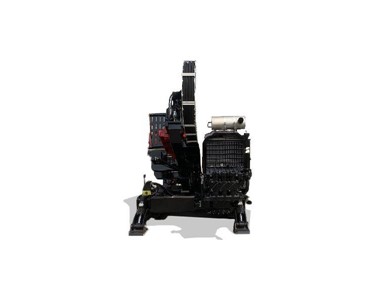

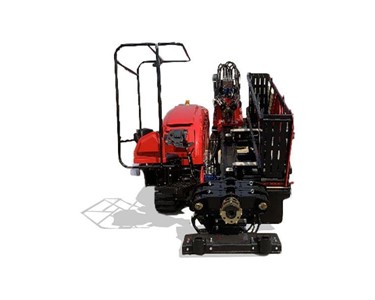

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Supplier: JB Trenchless

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Horizontal Directional Drill | GS360-LS

Tackle anything from long fibre shots to light pipeline work with its impressive performance and range of options. The GS360-LS is your answer when the job demands both power and precision.

Receive 1-3 days from order

Features of this product

Rod Basket Capacity ~108m (4x9=36pcs Rods)
Breakout System Standard hydraulic vice
Flow indicator Standard meterage
Stakedown System Hydraulic lever operated
Strike Alert Standard
Remote Lockout Standard
Seat Sensor Standard

Specifications of this product

Weight 9800 kg
Max. Thrust & Pullback Force 380/760 kN
Max. Torque 14000 N•m
Engine Power 153 kW
Max Mud Flow 250 L/min
Entry Angle 13 – 23 degrees
Dimension(L x W x H) 7300 X2230X2310 mm
Max. Thrust & Pullback Speed 36 m/min
Max. Rotation Speed 135r/min
Walking Speed 2.5-4 km/hr
Max Mud Pressure 8 Mpa
Max Climbing Gradient 18 degress

To contact JB Trenchless about Horizontal Directional Drill | GS360-LS use Get a quote.

Features of this product

Rod Basket Capacity ~108m (4x9=36pcs Rods)
Breakout System Standard hydraulic vice
Flow indicator Standard meterage
Stakedown System Hydraulic lever operated
Strike Alert Standard
Remote Lockout Standard
Seat Sensor Standard

Specifications of this product

Weight 9800 kg
Max. Thrust & Pullback Force 380/760 kN
Max. Torque 14000 N•m
Engine Power 153 kW
Max Mud Flow 250 L/min
Entry Angle 13 – 23 degrees
Dimension(L x W x H) 7300 X2230X2310 mm
Max. Thrust & Pullback Speed 36 m/min
Max. Rotation Speed 135r/min
Walking Speed 2.5-4 km/hr
Max Mud Pressure 8 Mpa
Max Climbing Gradient 18 degress

To contact JB Trenchless about Horizontal Directional Drill | GS360-LS use Get a quote.

GS360-LS-Spec-Sheet-JB(0.17MB)
