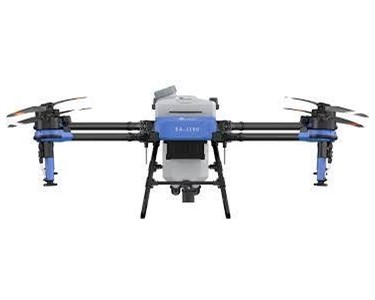

The EAVision J100 Agricultural Drone is the flagship of the EAVision fleet. It allows for four agriculture use functions in one drone. The advanced technological features have evolved with extensive in-field experience across various operating environments. Built around first-of-type Lidar obstacle avoidance technology,  advanced spray application nozzles and a powerful power system. The EAVision J100 covers all of your Drone Spray and Spreading requirements.

Multiple ALS Array

A combination of 3 Radar systems provides real-time avoidance in complex environments.

The J100 is equipped with a laser compound eye vision system composed of forward lidar, downward lidar, and a 360-degree rotating radar, enabling multi-directional obstacle detection and avoidance to enhance safety. Additionally, during the operation, it can accurately detect crop heights, enabling terrain-following flight. This allows the drone to maintain a consistent altitude relative to the crops throughout the spraying operation, ensuring uniformity in pesticide application.

Combining a 360-degree panoramic view with high-definition resolution, it can recognize obstacles such as dead branches, utility poles, and power lines in complex operational environments, providing comprehensive safety assurance for flight.

SAFE OPERATION DAY & NIGHT

The onboard chipset and computational power allow for the real-time creation of a 3D map of the operational environment. It autonomously plans safe flight routes and ensures smooth obstacle avoidance and terrain following at a speed of 10m/s. There is no need for manual terrain selection, allowing for efficient, worry-free operation.

Night flight operations are available with radar systems working in both daylight and nighttime operations.

3RD Generation CCMS Nozzle

The 3rd generation CCMS spray / misting nozzle combines four years of field testing on multiple crop types and a range of conditions. It is the first nozzle of its type that allows for the full range of application options from misting to large droplet spraying.

The 4-nozzle configuration offers an application rate of 24lt / min. Combine this with the ability to quickly change the nozzle disc, droplet size can range from 10mu to 620**mu.

Continuous fan downwash

The “Multi-Directional Continuous Rotation Fan” (MCRFF) is a fan downwash matched with fluid application for UAV underwashing. It forms a large-scale diffuse mist in the forward and rear edges of the aircraft. This enables dual penetration from top to bottom and horizontal diffusion in the middle.

The result is that the application is more transparent and distributed more evenly.

Improved Flight performance

Using large 56-inch propellers, each propeller/motor combination has a pulling force of up to 53kg. This provides a Thrust-to-Weight ratio of 2:1, providing the performance needed for all complex environments.

With a maximum flight speed of 13.8 meters per second, an effective spray width of up to 10 meters, and intelligent flight management, it offers industry-leading operational efficiency.

J100 CTB Supercharging Battery

The new EAVision J100 Supercharging Battery is the first fully modular drone battery that allows for the replacement of individual battery components. All components from circuit boards to terminal points, and even individual cells can be individually changed leading to an extended service life.

The individual cell blade-like design enhances rapid cooling both during operation and high-speed charging.

Combined with a compatible generator, the 29aH battery can be changed within 9 minutes allowing for continuous operation with just 2 batteries.
