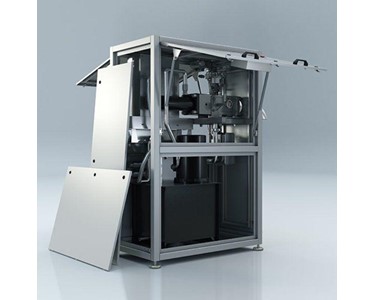

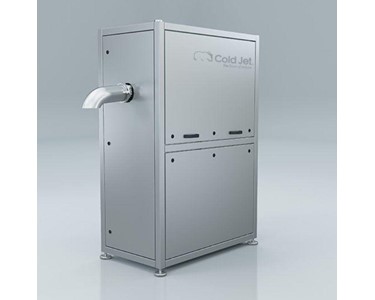

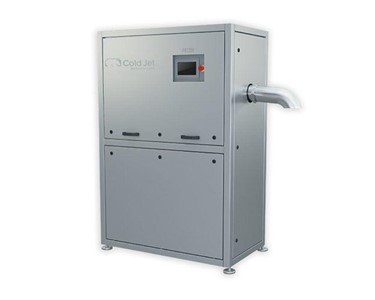

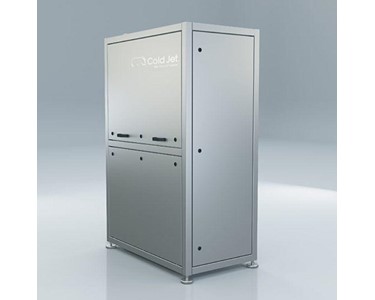

Dry Ice Production Equipment Up to 1,653 lb/hr | Cold Jet PR750H Get latest price

Read more...

To contact Cold Jet Australia about Dry Ice Production Equipment Up to 1,653 lb/hr | Cold Jet PR750H use Get a quote.

This is secured by the closed chamber technology which also ensures fast production shifts and an extreme short start up time.

The automatic change of extruder plates also removes downtime and reduces loss of valuable CO2. The pellet length and quality are optimized using the new pelletizer, and the complete version of the PR750H can produce two sizes of pellets at the same time. The PR750H contains lots of technical features compared to existing products on the market.

For instance a heat exchanger is used to minimize waste of energy during the sublimation process. The hydraulic unit uses logic components for higher performance.

The machine parts are protected by a moisture-free enclosure, which also reduces the noise level to a minimum (below 75 dB(A). The PR750H provides a non-stop supply of high-quality dry ice pellets. The source of raw material for the production of pellets is liquid carbon dioxide conserved at low temperature in a storage tank.

The liquid CO2 flows into the machine in a regulated manner and is transformed into CO2 snow which is then pressed through an extruder plate by means of the horizontal movement of a hydraulic driven piston.

The PR750H is built on the latest technical advances in industrial PC controls which includes a 15” color touch display optimized for easy and intelligent control via multi-lingual context. It’s also prepared for easy integration in your company’s control system. It can be a simple remote start/stop button or a more sophisticated solution via a BUS/Ethernet connection.

If the PR750H is connected to your LAN or Internet, the entire display can be transferred to the computer desktop of your choice – anywhere in the world.

RATED OUTPUT

Up to 1,653 lb/hr (750 kg/hr) of high quality dry ice pellets

DRY ICE PARTICLE SIZE

3 mm, 6 mm, 10 mm, or 16 mm via Automatic Quick Die Change

For lower volume dry ice production needs, view our PR350 and PR120H dry ice pellet machines.

The PR750H Advantage

Proprietary Sub Cooling Technology

Lowest conversion factor on the market.

Intuitive Display

Panel PC with built in 15” touch screen allows remote support with an internet connection.

Fully automated

One button operation enables ease of use and quick start up.

Cold Jet CONNECT®

Remotely monitor, diagnose and implement corrective action from any location.

Dry Ice Pelletizer Features

• Closed chamber technology ensures short start up time and fast production
• Panel PC with built in 15” touch screen allows remote support with an internet connection
• Machine parts protected by a moisture-free enclosure reduces the noise level to 75db (A)
• Sub Cooling technology minimizes CO2 waste
• Automatic change extruder plate

Dry Ice Pelletizer Specifications

Dimensions

59" x 59" x 71" (1500 x 1500 x 1800 mm)

Weight

4017 lbs (1822 kg) - Includes Hydraulic Oil

Part #

90636 (CE 380V, 50 HZ); 90637 (UL 480V, 60 HZ)
