CNC Press Brake | G30
Designed for applications requiring longer bending lengths and higher tonnage, the G-Series features an O-frame design to minimize deflection and maintain accuracy.
G20 to G40: Models range from 60 to 150 tonnes with bed lengths up to 4 meters (13.1 ft). Each model incorporates CoastOne’s unique direct crowning system, allowing the upper beam to CNC-deflect in sync with the lower beam, ensuring consistently accurate bends.

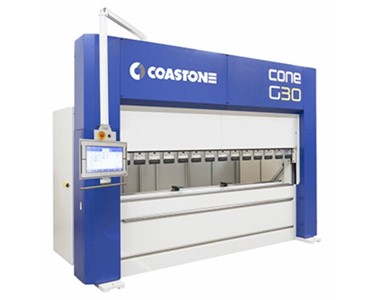

The G30 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G30 has five servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.
In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.
To contact Sheetmetal Tooling Tech about CNC Press Brake | G30 use Get a quote.
Designed for applications requiring longer bending lengths and higher tonnage, the G-Series features an O-frame design to minimize deflection and maintain accuracy.
G20 to G40: Models range from 60 to 150 tonnes with bed lengths up to 4 meters (13.1 ft). Each model incorporates CoastOne’s unique direct crowning system, allowing the upper beam to CNC-deflect in sync with the lower beam, ensuring consistently accurate bends.
The G30 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G30 has five servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.
In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.
To contact Sheetmetal Tooling Tech about CNC Press Brake | G30 use Get a quote.
