• CC-Prime

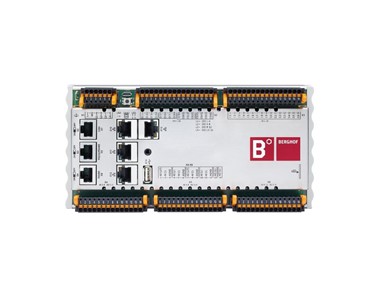

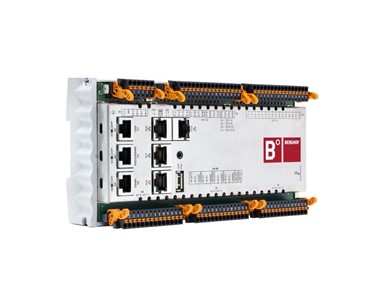

  The B-Fortis CC-Prime is the flagship model in Berghof's all-in-one controller series and combines maximum performance with versatile functions. This compact PLC not only offers impressive performance, but also plenty of space for numerous interfaces.

  With standardized components, consistent form factor and well thought-out interface layout, the CC-Prime is particularly easy to configure, install and maintain.

  • Configurable inputs for counters and encoders
  • Two-stage external HW watchdog
  • PT100/PT1000-compatible analog inputs
  • Application update via USB
  • Application protection via tamper-proof hardware identification
  • Optional shortening of the PLC cycle time down to 500 μs
  • Variety of fonts
  • Universally usable VNC + HTML5 web browser
  • OpenVPN
  • Tool-free installation
  • Energy-saving components and software functions
  • Integrated interrupt/event inputs
  • Ethernet switch included as standard
  • Optional compatibility of the digital outputs with currents up to 1A
  • Suitable for multi-master operation
  • Serial 9-bit multi-drop mode
  • Operating hours counter
  • Buzzer and optional sound chip for mp3 playback
  • Analog I/O with up to 24-bit resolution
